BIGTREETECH CAN Adapter V1.0 for BTT Pi – ARM Cortex-M0+ CAN Bus

Description

Product Overview

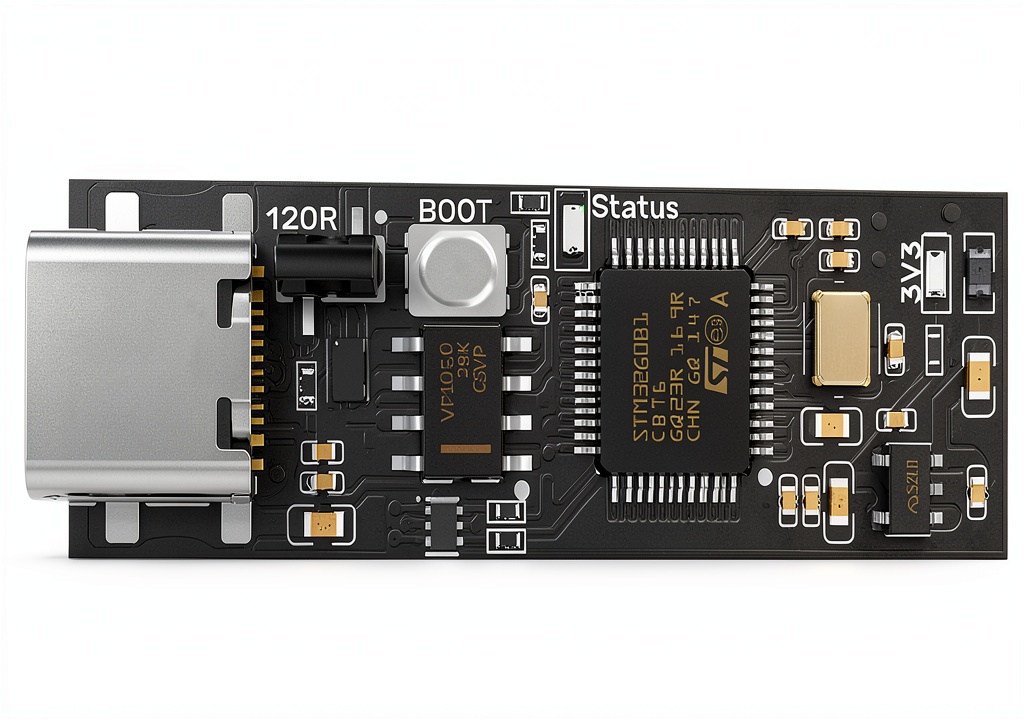

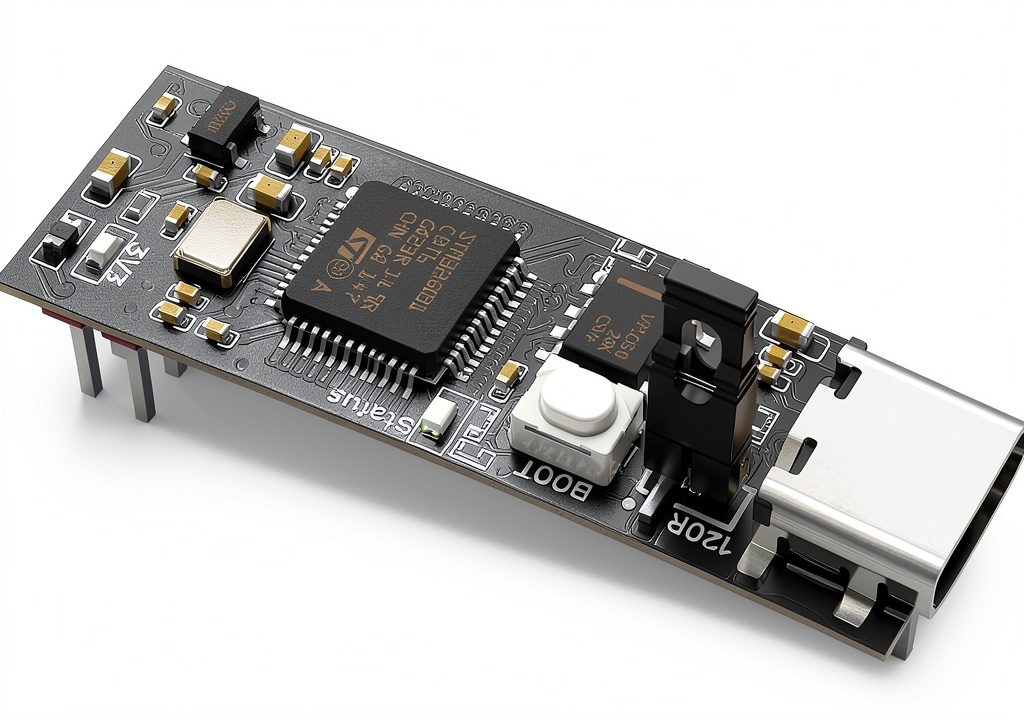

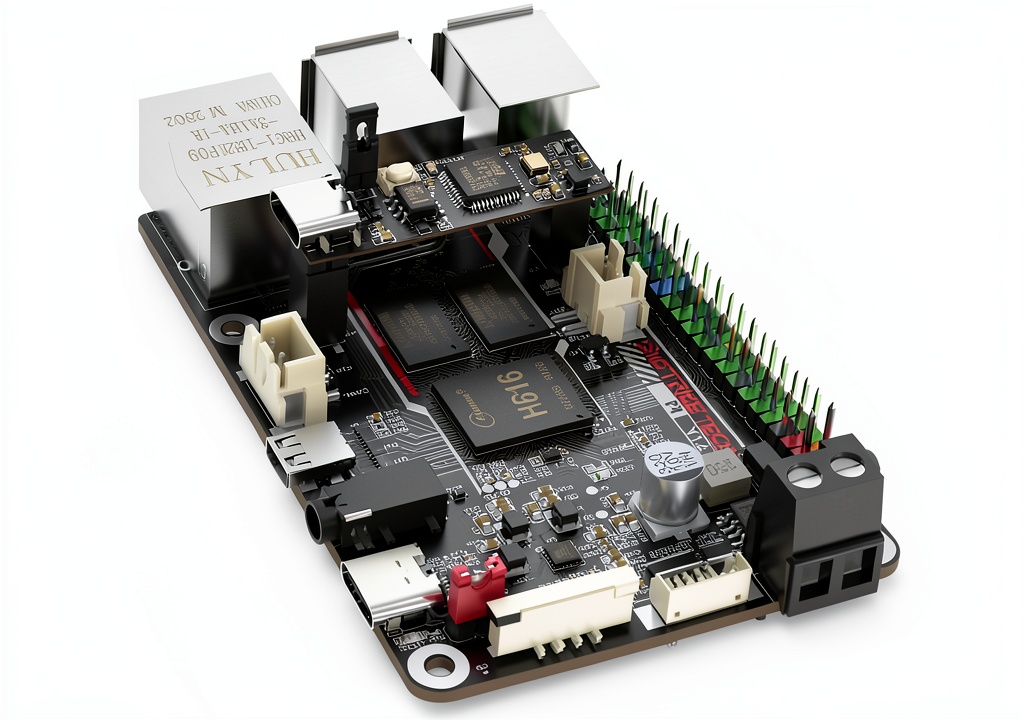

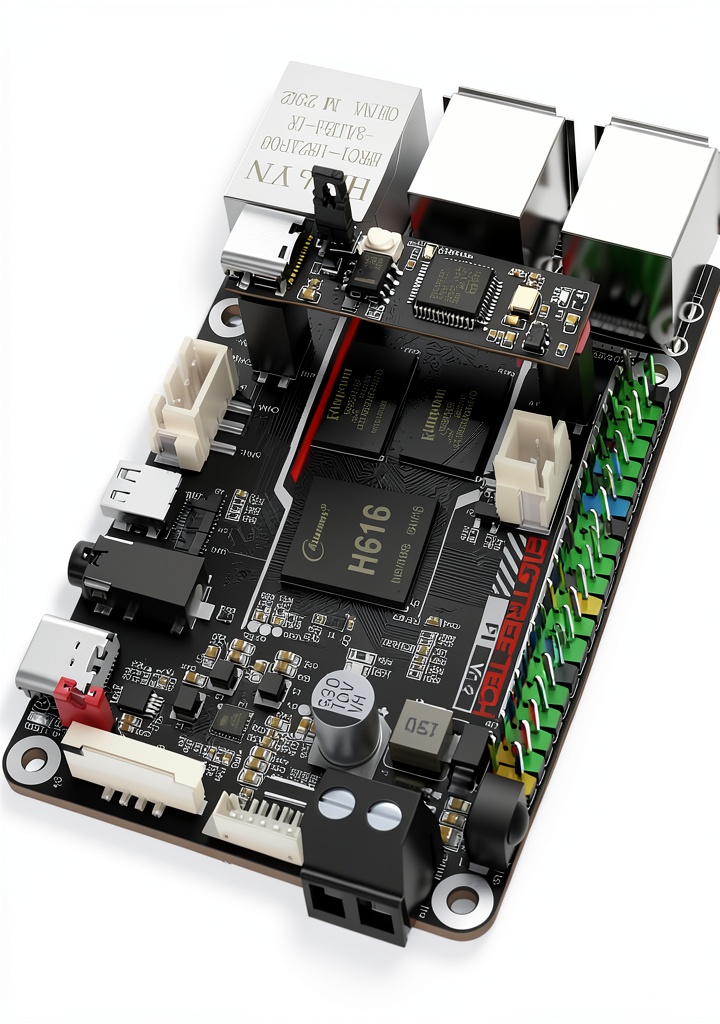

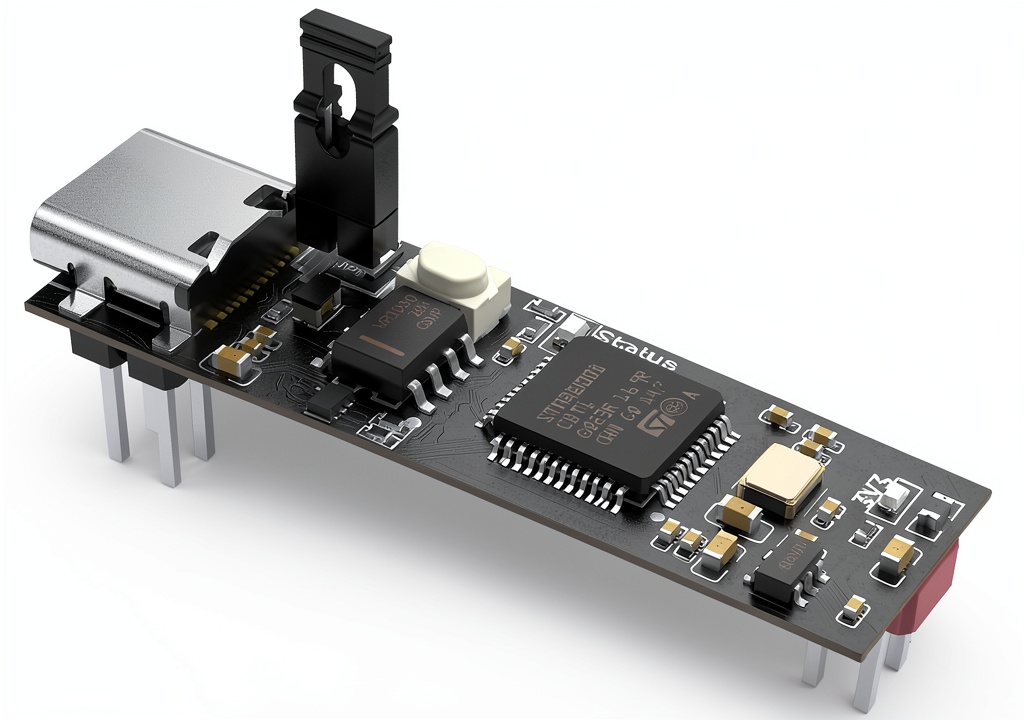

The BIGTREETECH CAN Adapter V1.0 is engineered to expand the capabilities of the BIGTREETECH Pi V1.2, providing a dedicated CAN Bus interface for industrial‑grade communication. At its heart lies a 32‑bit ARM Cortex‑M0+ STM32G0B1CBT6 microcontroller, delivering fast, deterministic data handling essential for coordinated motion control in modern 3D printers. The board features a Type‑C connector with built‑in ESD protection, safeguarding the electronics from static discharge during handling or installation. A high‑quality immersion‑metal PCB ensures superior thermal performance and long‑term reliability, while the compact footprint (0.79 x 0.79 x 0.39 inches) allows seamless integration into tight printer enclosures. Designed specifically for the BIGTREETECH Pi V1.2, the adapter plugs directly onto the board, eliminating the need for additional wiring or soldering.

Usage

This adapter is ideal for makers, hobbyists, and professional users who require robust CAN communication between multiple printer modules, such as extruders, motion controllers, and sensor arrays. Whether you are building a multi‑extruder system, integrating a remote monitoring unit, or upgrading an existing printer to a networked configuration, the CAN Adapter provides a reliable backbone that tolerates the electrical noise typical of high‑current stepper drivers. Its plug‑and‑play design means you can install it in minutes, making it suitable for both prototype development and production‑level deployments. The adapter operates under Linux‑based firmware, ensuring compatibility with popular 3D printer control software and allowing for easy firmware updates.

Why Choose Us

Choosing the BIGTREETECH CAN Adapter means selecting a component that combines precision engineering with user‑centric design. The immersion‑metal PCB not only improves heat dissipation but also resists corrosion, extending the product’s lifespan even in demanding workshop environments. Our rigorous quality‑assurance process includes functional testing of each unit at the factory, guaranteeing that every adapter meets the specified performance criteria before it reaches you. Additionally, BIGTREETECH offers responsive technical support and firmware updates, ensuring that your investment remains future‑proof as the 3D printing ecosystem evolves.

Key Features

• Seamless integration with BIGTREETECH Pi V1.2 for instant CAN Bus enablement
• 32‑bit ARM Cortex‑M0+ processor delivers fast, reliable data handling
• Type‑C connector with ESD protection safeguards against static damage
• Premium immersion‑metal PCB ensures superior durability and thermal performance
• Dedicated after‑sales support and firmware updates from BIGTREETECH

FAQ

Is this adapter compatible with other BIGTREETECH boards?

The adapter is specifically designed for the BIGTREETECH Pi V1.2. While it may physically fit on other boards, full functionality and driver support are guaranteed only for the Pi V1.2.

Do I need to solder any connections?

No. The module plugs directly into the designated CAN header on the Pi board, providing a solder‑free installation experience.

What operating systems are supported?

The adapter works with Linux‑based firmware commonly used on BIGTREETECH controllers. It is compatible with popular 3D printer host software that runs on Linux, Windows, or macOS when the controller is connected via USB.

Can I use this adapter for non‑printing applications?

Yes. The CAN Bus interface is a general‑purpose communication protocol, making the adapter suitable for robotics, CNC machines, or any project that benefits from reliable, high‑speed serial networking.

How does the ESD protection work?

The Type‑C port includes built‑in transient voltage suppression components that clamp sudden voltage spikes, preventing them from reaching the microcontroller and preserving the integrity of your system.
