Description
Product Overview
The STEPPERONLINE DM420Y is a digital stepper motor driver engineered for demanding CNC and additive manufacturing environments. Designed to accommodate Nema 14, Nema 17, and Nema 23 stepper motors, it offers a flexible peak current range from 0.3 A up to 2.2 A, while accepting a wide DC input voltage span of 18 V to 36 V. This broad voltage tolerance enables stable operation across a variety of power supplies, reducing the need for additional regulation hardware. The driver’s internal architecture features a high‑speed microcontroller that processes pulse commands at up to 100 kHz, delivering exceptionally fast impulse response and smooth low‑frequency subdivision. These capabilities translate into ultra‑precise positioning, reduced vibration, and quieter operation—critical factors for high‑resolution 3D printing, fine‑detail CNC milling, and robotic motion control. The compact PCB measures just 5.12 × 2.95 × 1.77 inches and weighs only 5.29 oz, allowing easy integration into tight enclosures without sacrificing thermal performance. Robust component selection, including automotive‑grade MOSFETs and protective circuitry, ensures long‑term reliability even under continuous high‑current loads.

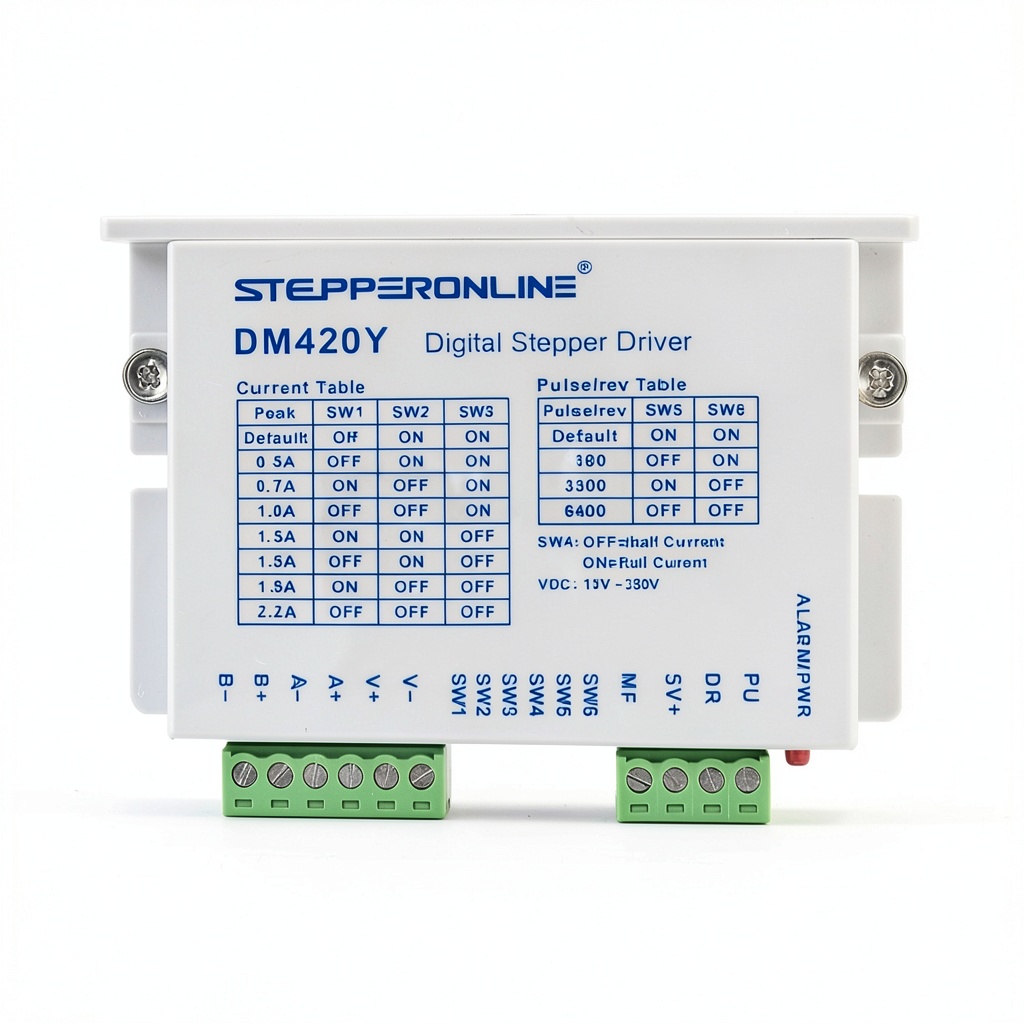

![[Product front view showing all components]](https://www.marchpast.store/wp-content/uploads/2026/07/b309a5d12a8e407bb3effd6c88a3dd42.jpg)
Usage
In modern additive manufacturing, the DM420Y serves as the heart of motion systems that demand both speed and accuracy. Its 100 kHz impulse response makes it ideal for high‑speed extrusion heads, where rapid acceleration and deceleration are required to maintain consistent filament flow. For CNC machining, the driver’s ability to subdivide low‑frequency steps smoothly reduces mechanical resonance, allowing smoother cuts on wood, acrylic, and soft metals. The wide voltage range supports both battery‑powered portable CNC routers and mains‑connected industrial machines, giving engineers flexibility in system design. Robotics enthusiasts also benefit from the driver’s precise current control, which enables torque‑limited operation for delicate gripping tasks. Because the DM420Y is compatible with standard step‑and‑direction signal interfaces, it integrates seamlessly with popular controller boards such as Arduino, Raspberry Pi, and dedicated CNC motion controllers, simplifying firmware development and reducing time‑to‑market.
Why Choose Us
Choosing the STEPPERONLINE DM420Y means selecting a product backed by over a decade of engineering expertise in motion control solutions. Each driver undergoes a rigorous quality assurance process that includes thermal cycling, electrical stress testing, and vibration analysis to certify performance under real‑world conditions. The use of high‑grade components, such as low‑RDS(on) MOSFETs and precision resistors, ensures consistent current delivery and minimizes heat generation, extending the lifespan of both driver and motor. STEPPERONLINE provides comprehensive technical documentation, including wiring diagrams, configuration guides, and firmware examples, empowering users to get up and running quickly. In addition, a dedicated support team offers responsive after‑sales assistance, with options for firmware updates, troubleshooting, and custom configuration advice. This combination of durability, documentation, and customer service makes the DM420Y a trustworthy choice for both hobbyists and professional manufacturers.
Key Features
- Broad current range (0.3‑2.2 A) accommodates a variety of Nema motor sizes.
- Wide input voltage tolerance (18‑36 V DC) simplifies power supply selection.
- High‑speed 100 kHz impulse response delivers ultra‑precise positioning.
- Compact PCB footprint fits into tight machine enclosures without overheating.
- Dedicated technical support and firmware updates ensure long‑term reliability.
FAQ
What motor sizes are compatible with the DM420Y?
The driver is rated for Nema 14, Nema 17, and Nema 23 stepper motors, covering a wide range of torque and size requirements commonly found in 3D printers and CNC machines.
Can the driver operate on a 24 V power supply?
Yes. The DM420Y accepts any DC voltage between 18 V and 36 V, making a 24 V supply a perfectly suitable choice for most applications.
How does the 100 kHz response improve printing quality?
A faster impulse response reduces latency between command and motor movement, allowing smoother acceleration curves and finer detail reproduction, which directly translates to higher print resolution and surface finish.
Is there firmware support for popular controller boards?
STEPPERONLINE provides example firmware and configuration files for Arduino, Raspberry Pi, and many CNC controller platforms, ensuring straightforward integration with existing hardware.
What warranty does STEPPERONLINE offer?
The driver comes with a standard one‑year limited warranty covering manufacturing defects, and the support team is available to assist with any technical issues throughout that period.
