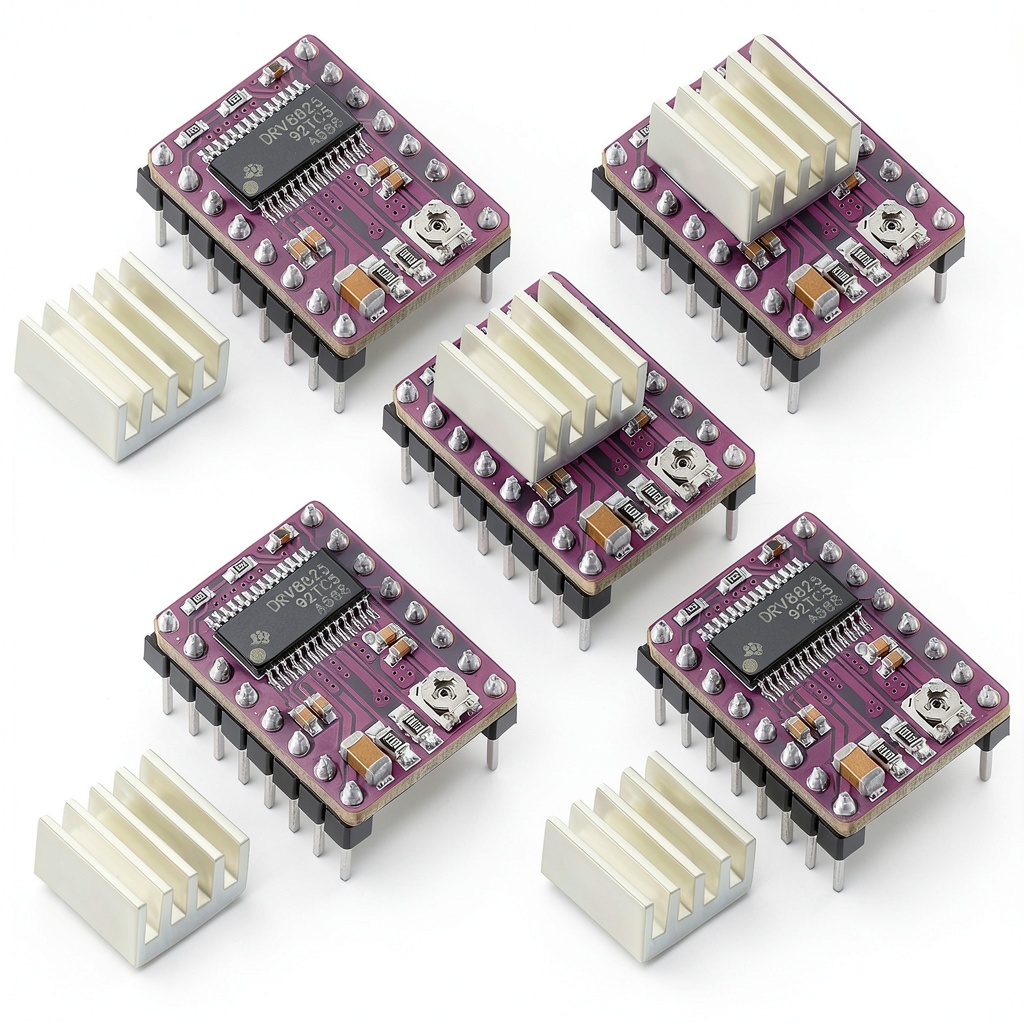

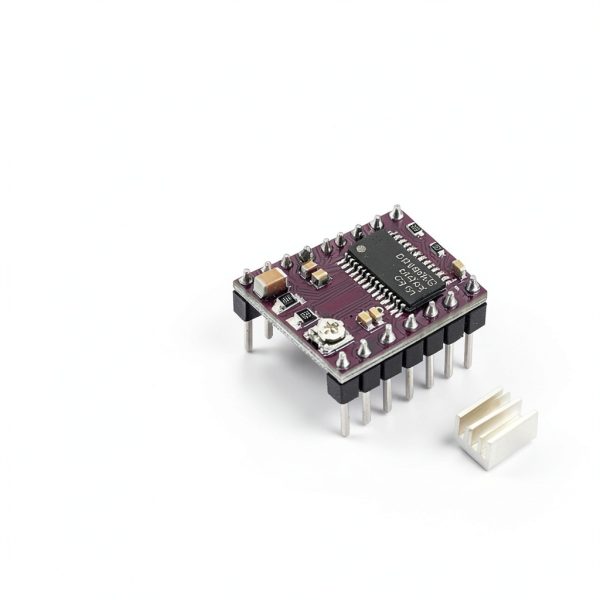

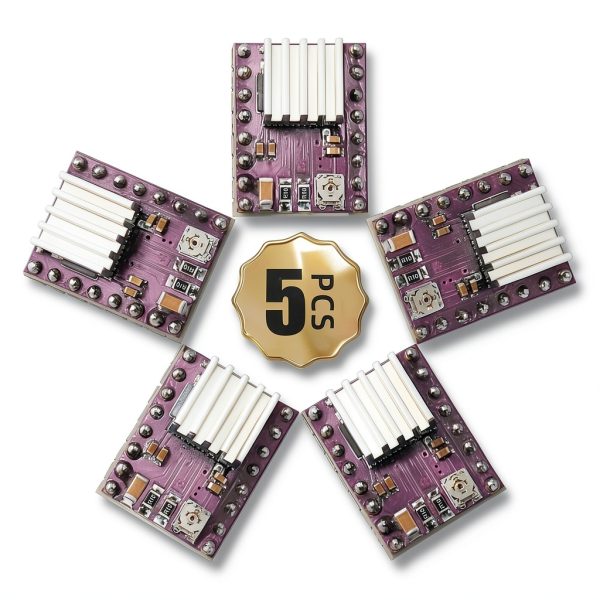

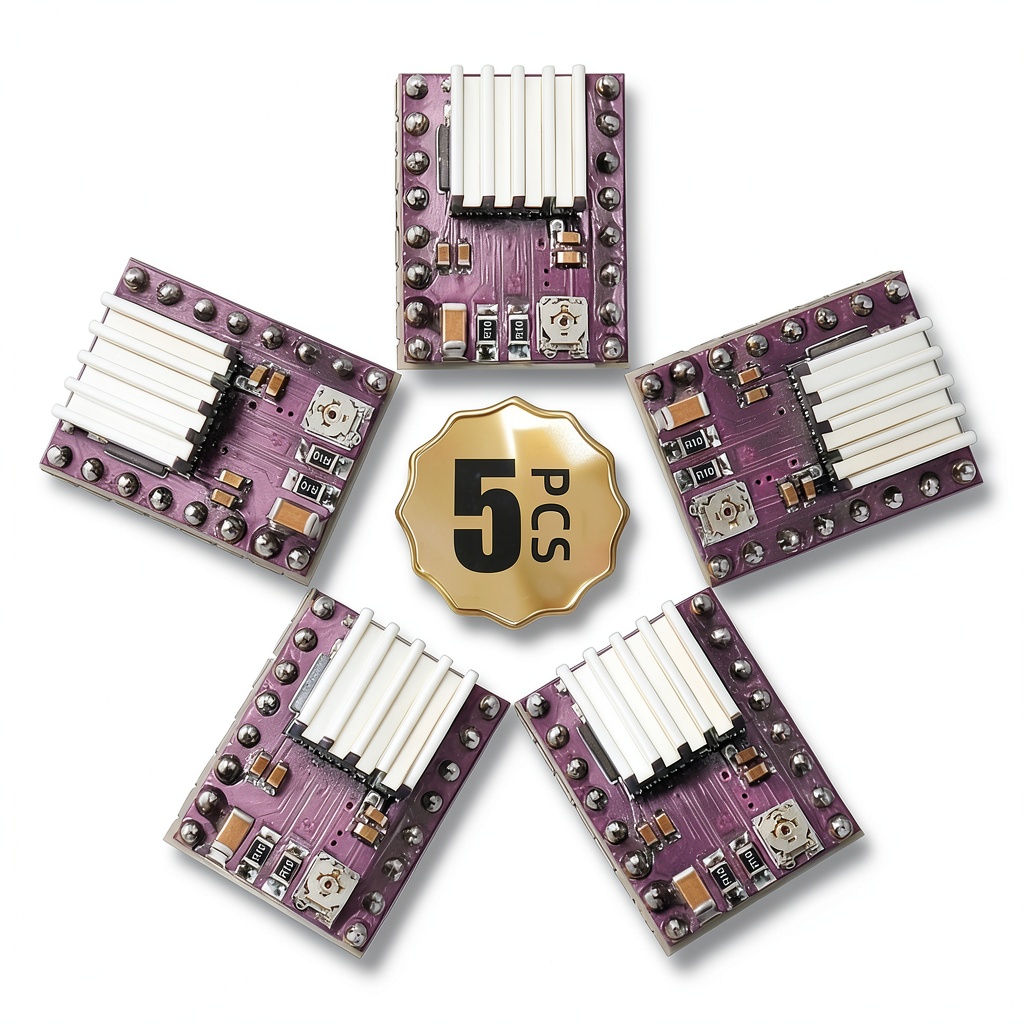

DRV8825 Stepper Driver DaFuRui 5pcs HS for 3D Printers

Description

Product Overview

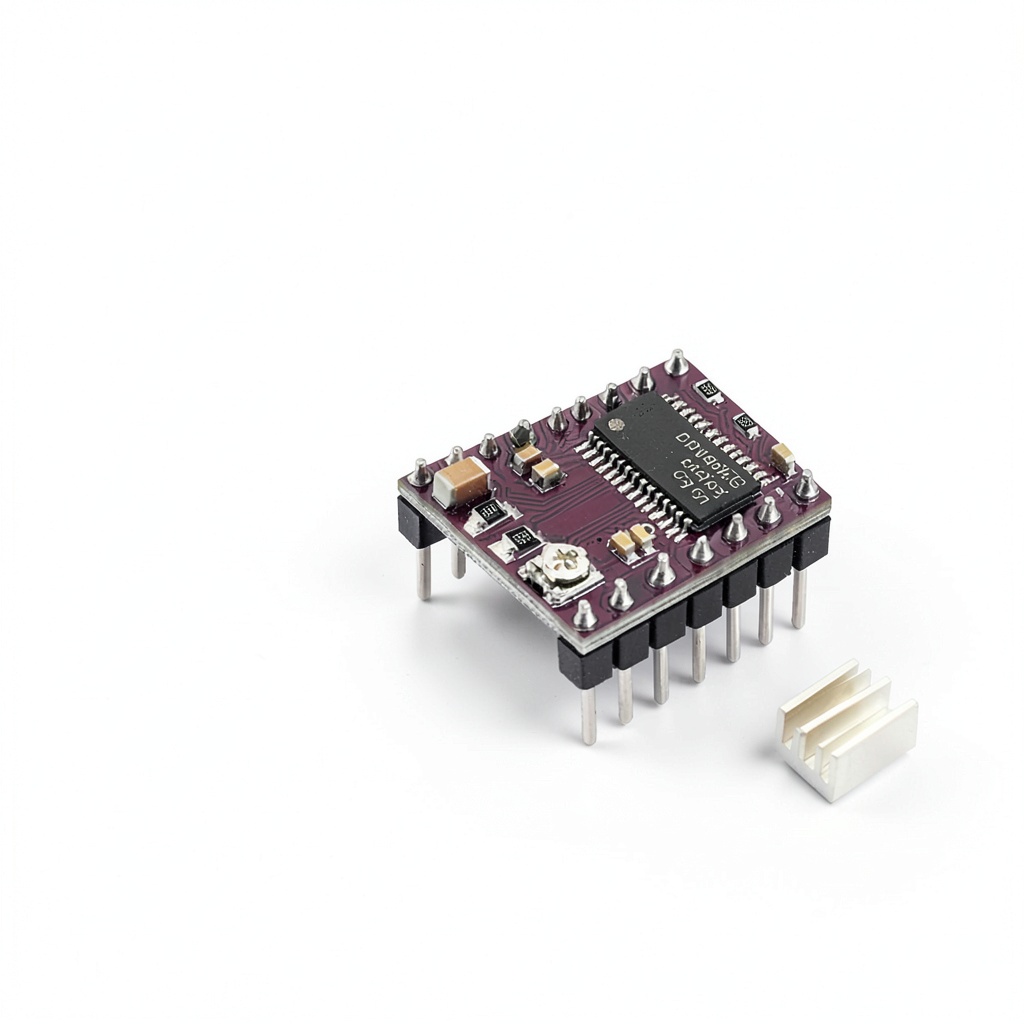

The DRV8825 stepper motor driver module by DaFuRui is engineered to meet the rigorous demands of modern additive manufacturing, robotics, and CNC machining. Each unit incorporates a robust MOSFET architecture capable of delivering up to 2.5 A of continuous current per phase, while maintaining precise control over bipolar stepper motors. The module supports six distinct microstepping resolutions—full step, half step, 1/4, 1/8, 1/16, and 1/32—allowing users to fine‑tune motion smoothness and torque output for a wide range of applications. Integrated over‑current protection monitors the motor current in real time, instantly shutting down the driver if unsafe levels are detected, thereby safeguarding both the motor and the controller board. Thermal management is enhanced by a dedicated aluminum heat sink that dissipates excess heat efficiently, reducing the risk of thermal throttling during prolonged operation. The compact footprint (7.8 × 4.96 × 0.67 in) and lightweight design (2.89 oz) make the module an ideal fit for popular development platforms such as Arduino, Raspberry Pi, and RAMPS 1.4, ensuring seamless integration into existing printer or robot assemblies.

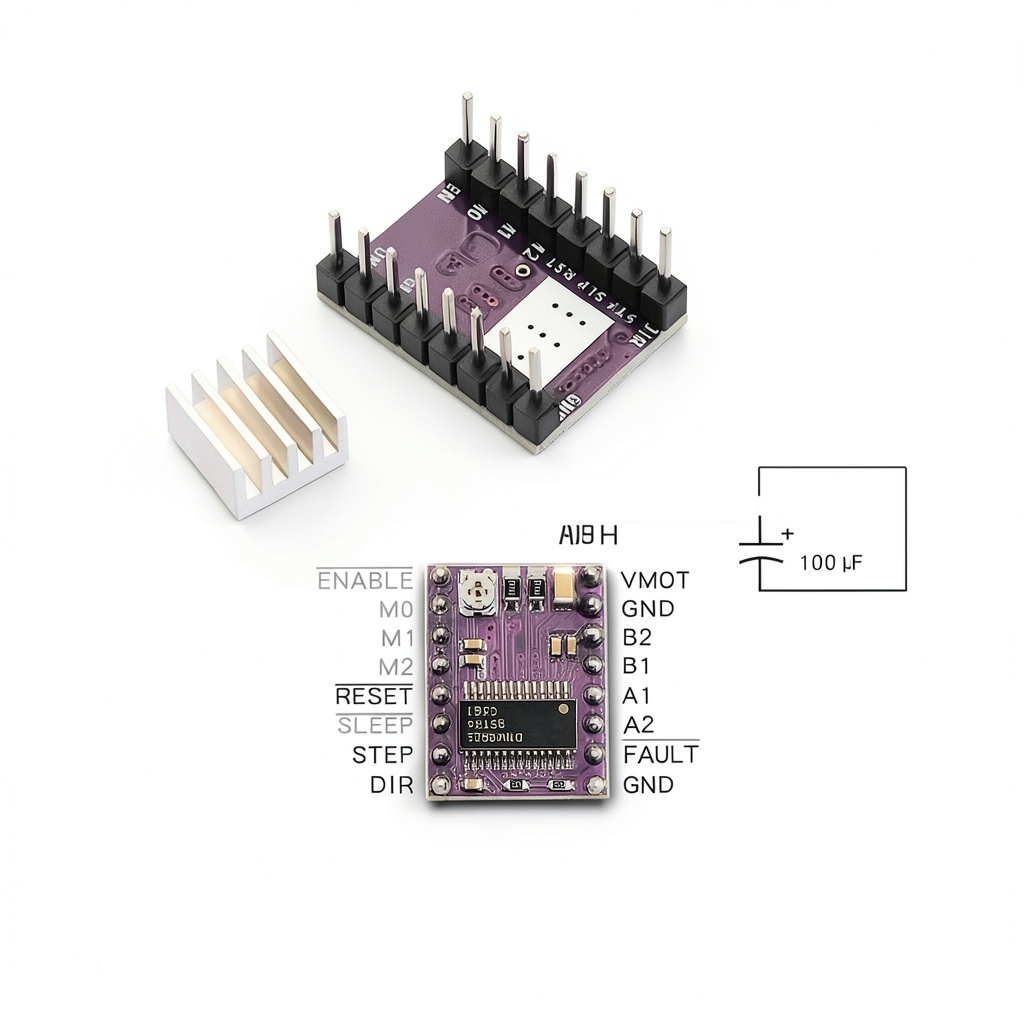

Beyond its core electrical specifications, the DRV8825 module offers a user‑friendly interface with clearly labeled pins for VCC, GND, STEP, DIR, and EN (enable). This layout simplifies wiring and reduces setup time, especially for hobbyists and engineers who need to prototype quickly. The module’s durability is further reinforced by a protective epoxy coating that shields the circuitry from dust, moisture, and minor mechanical impacts, extending the product’s lifespan in industrial environments. With a best‑seller rank of #59 in the 3D Printer Interface & Driver Modules category, the DRV8825 has earned a reputation for reliability, reflected in its 4.6‑star rating from 26 verified customer reviews. Whether you are upgrading an existing printer, building a custom CNC router, or designing a new robotic arm, this driver provides the performance, safety, and flexibility required to achieve precise, repeatable motion control.

Usage

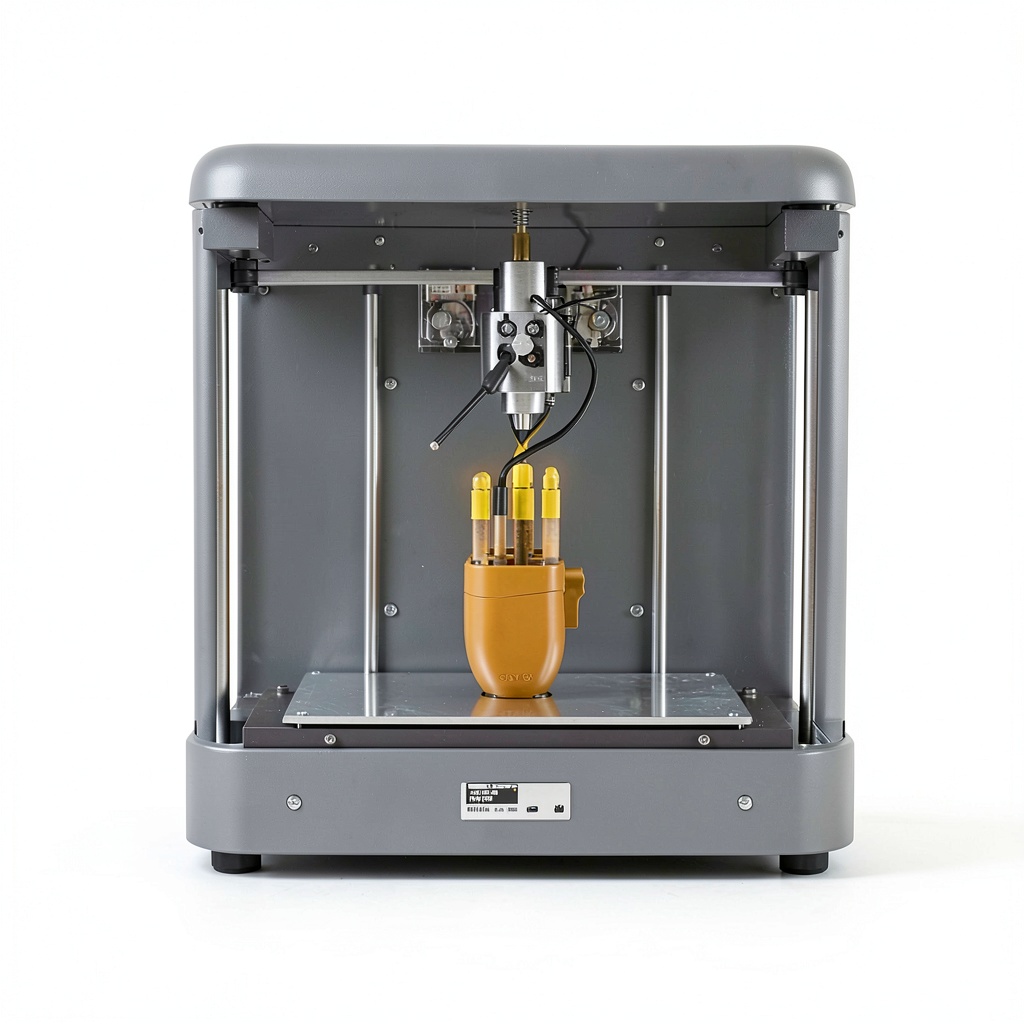

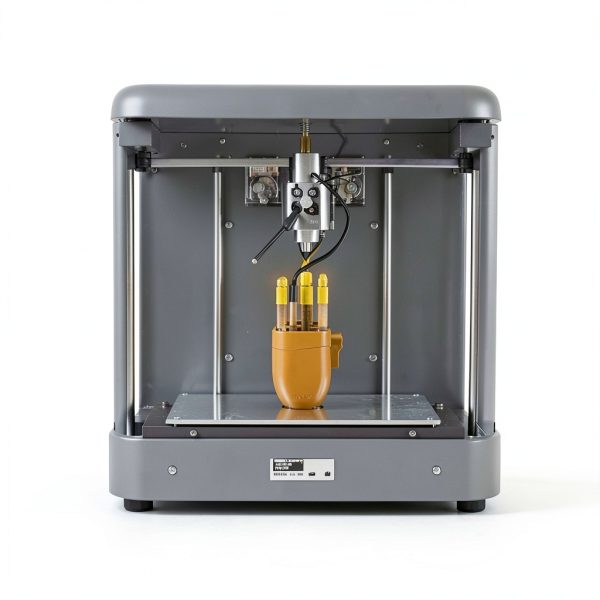

The DRV8825 driver excels in a variety of real‑world scenarios. In 3D printing, it enables high‑resolution layer deposition by delivering smooth, microstepped motion to the X, Y, and Z axes, reducing artifacts such as ringing and ghosting. For CNC machines, the driver’s high current capability ensures that larger stepper motors can maintain torque under load, allowing for accurate cutting of wood, acrylic, and soft metals. Robotics enthusiasts benefit from the driver’s low‑power consumption and rapid response time, which are essential for dynamic gait control in legged robots or precise arm articulation in pick‑and‑place systems. The module’s compatibility with popular firmware such as Marlin, Repetier, and Smoothieware means that users can easily configure step resolution, current limits, and protection thresholds through software, tailoring performance to specific project requirements. Additionally, the included heat sink mitigates temperature rise during continuous operation, making the driver suitable for long‑duration prints or machining tasks that run for several hours without overheating.

Installation is straightforward: connect the driver to a RAMPS 1.4 board or any compatible stepper driver slot, attach the motor wires to the designated terminals, and configure the current limit using the onboard potentiometer. The driver’s EN pin can be tied to a microcontroller to enable or disable the motor instantly, providing an extra layer of safety during emergency stops. For users who require multi‑axis synchronization, the driver can be daisy‑chained with other DRV8825 modules, ensuring coordinated motion across all axes. The module’s robust design also tolerates occasional voltage spikes, thanks to built‑in transient voltage suppression, which protects both the driver and the host controller from damage caused by power fluctuations.

Why Choose Us

Choosing the DaFuRui DRV8825 driver means selecting a product backed by rigorous quality assurance processes. Each driver undergoes comprehensive testing for electrical performance, thermal stability, and mechanical resilience before leaving the factory. The company’s commitment to customer satisfaction is evident in its responsive technical support team, which offers assistance ranging from wiring diagrams to firmware configuration tips. DaFuRui provides a 12‑month warranty that covers manufacturing defects, giving users confidence in the long‑term reliability of their investment. Moreover, the driver’s design incorporates industry‑standard safety features such as over‑current shutdown, thermal overload protection, and short‑circuit detection, reducing the risk of equipment damage and downtime. The inclusion of a pre‑installed heat sink eliminates the need for aftermarket cooling solutions, simplifying the build process and ensuring consistent performance across a wide temperature range. By sourcing high‑quality components and employing precision soldering techniques, DaFuRui delivers a driver that meets the expectations of both professional engineers and dedicated makers.

In addition to the hardware advantages, DaFuRui offers extensive documentation, including detailed datasheets, wiring schematics, and step‑by‑step tutorials that guide users through the entire setup process. This educational support empowers customers to maximize the driver’s capabilities, whether they are fine‑tuning microstepping for ultra‑smooth motion or adjusting current limits for optimal torque. The company’s active online community provides a platform for sharing projects, troubleshooting issues, and exchanging ideas, fostering a collaborative environment that accelerates innovation. When you purchase the DRV8825 driver from DaFuRui, you gain access to a comprehensive ecosystem of resources designed to help you succeed in your next 3D printing, CNC, or robotics project.

Key Features

• High current capability up to 2.5 A per phase for reliable motor performance under load.
• Six microstepping options provide ultra‑smooth motion and precise positioning.
• Built‑in over‑current and thermal protection safeguards your equipment.

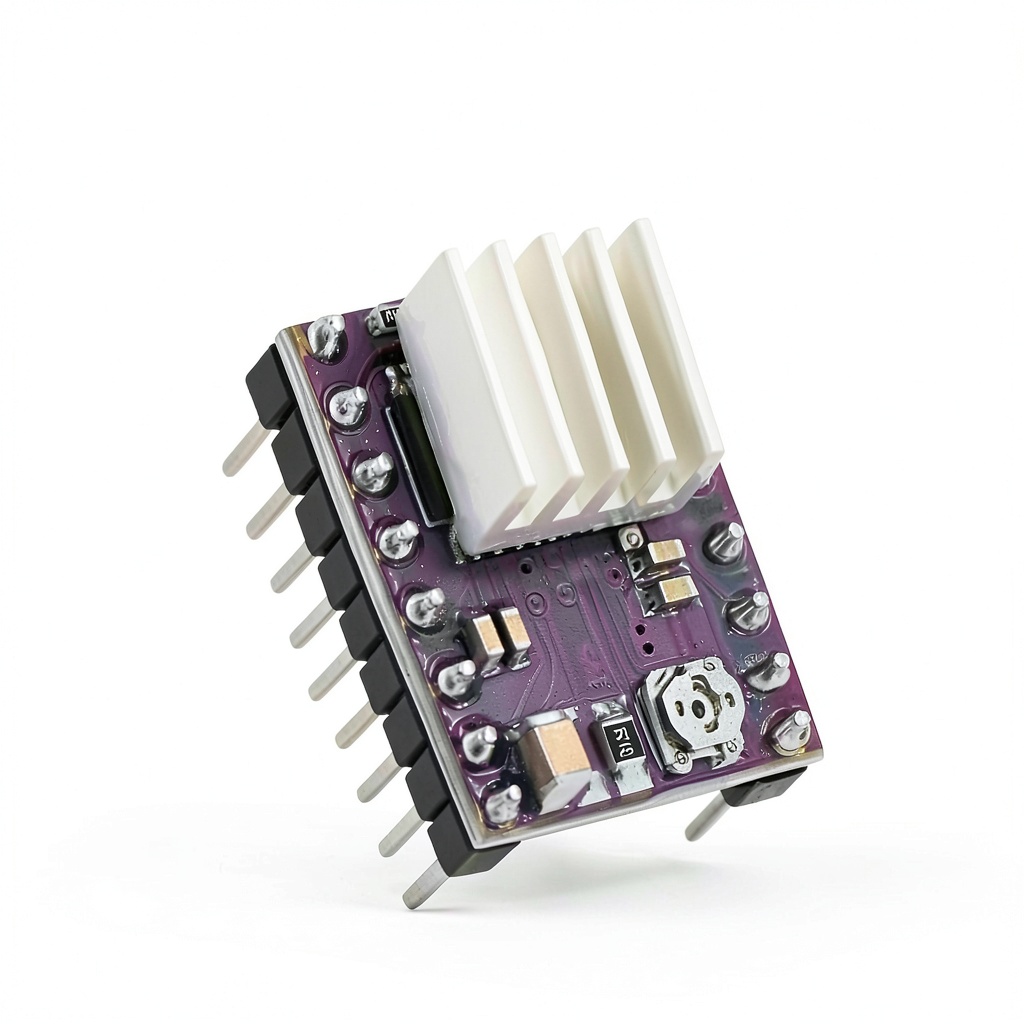

• Integrated aluminum heat sink ensures effective cooling during long runs.
• Comprehensive after‑sales support with 12‑month warranty and technical assistance.

FAQ

What voltage range does the DRV8825 driver accept?

The driver operates comfortably with an input voltage between 8.2 V and 45 V, making it compatible with most 12 V and 24 V power supplies used in 3D printers and CNC machines.

How do I set the current limit for my stepper motor?

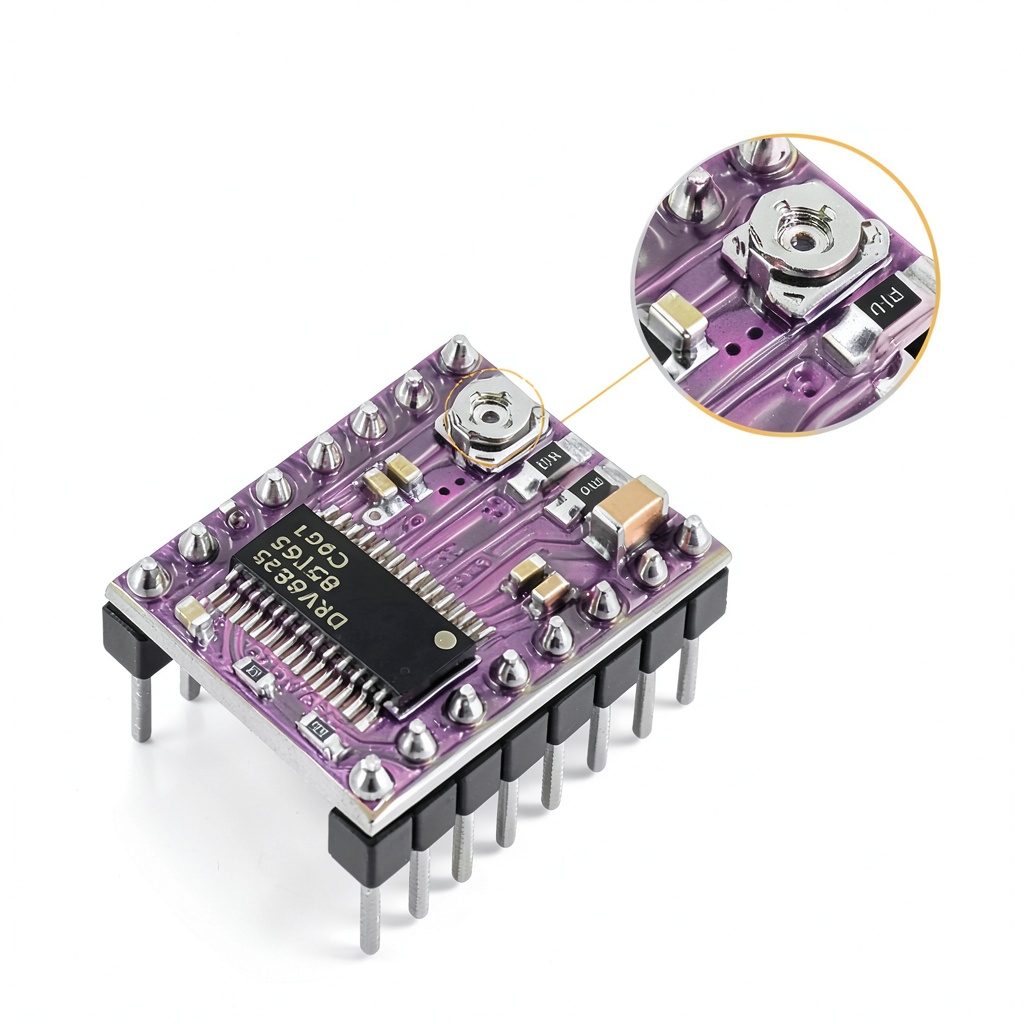

Adjust the small potentiometer on the driver while measuring the voltage on the VREF pin with a multimeter. Use the formula Imax = VREF × 2 (for a typical 1 Ω sense resistor) to calculate the appropriate current setting for your motor.

Can I use the DRV8825 driver with a Raspberry Pi?

Yes. The driver’s STEP, DIR, and EN pins can be connected to the GPIO pins of a Raspberry Pi. You will need to use a level‑shifting circuit or ensure the Pi’s 3.3 V logic is compatible with the driver’s 5 V logic levels.

Is the heat sink included sufficient for high‑speed printing?

The included aluminum heat sink is designed to dissipate heat generated during typical printing speeds and continuous operation. For extremely high‑speed or high‑current applications, adding a small fan can further improve cooling performance.

What warranty does DaFuRui provide?

DaFuRui offers a 12‑month limited warranty covering any manufacturing defects. If you encounter any issues, contact their support team for troubleshooting, replacement, or repair options.
