CNC Shield V3.0 AITIAO Board with Heat Sink

Description

Product Overview

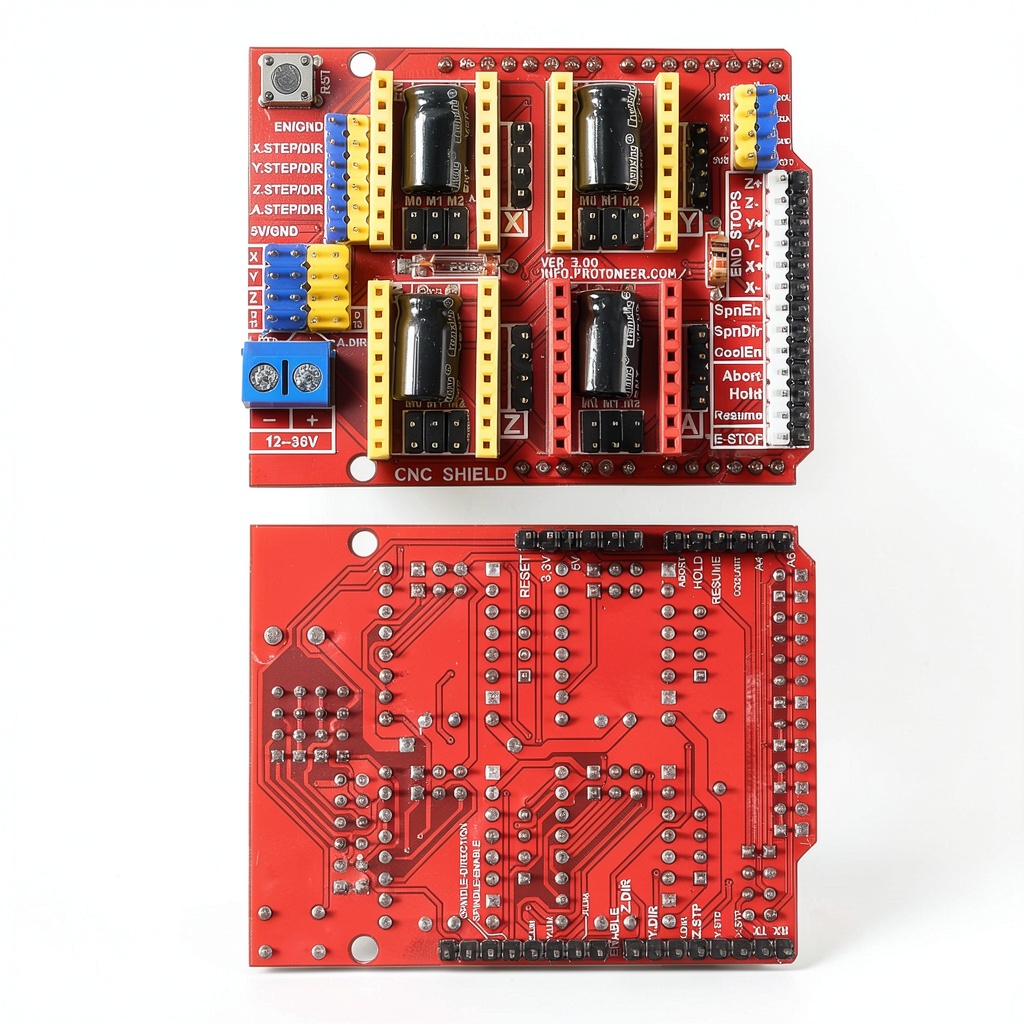

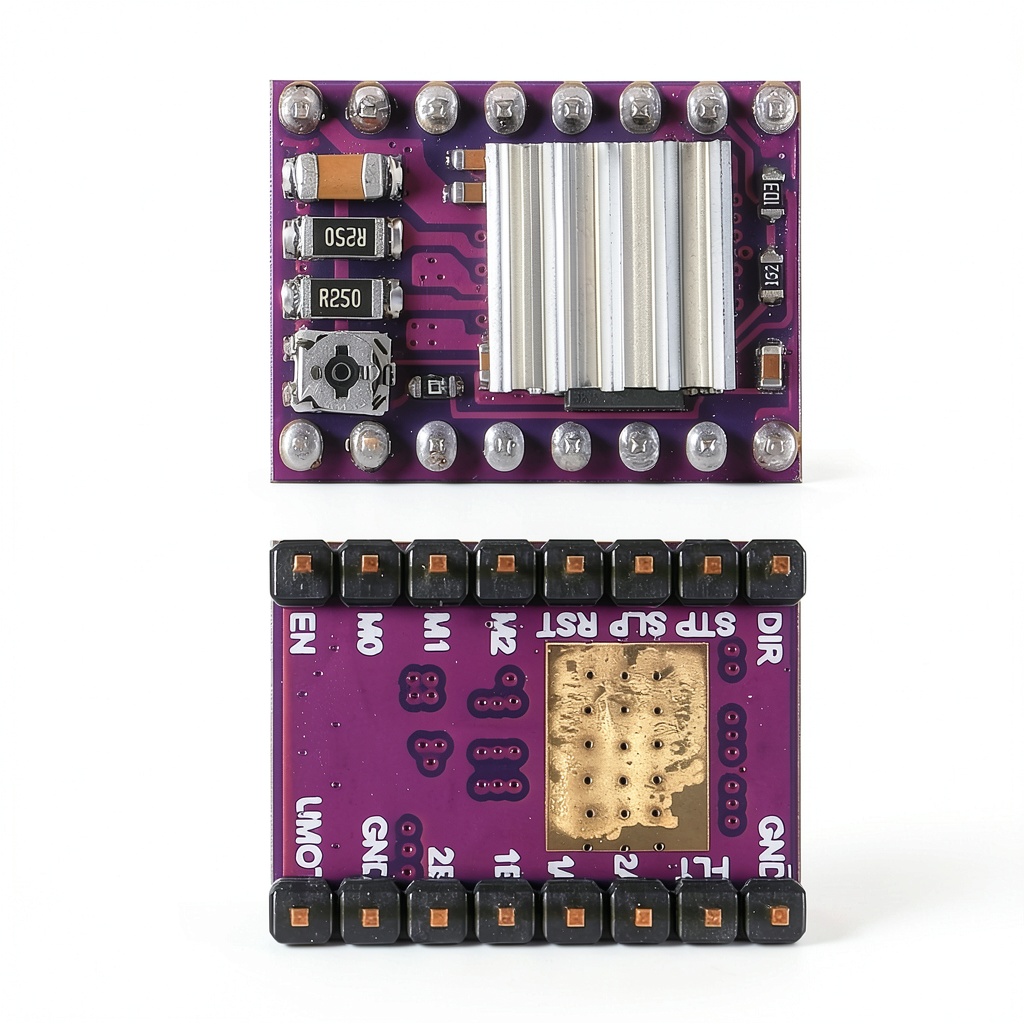

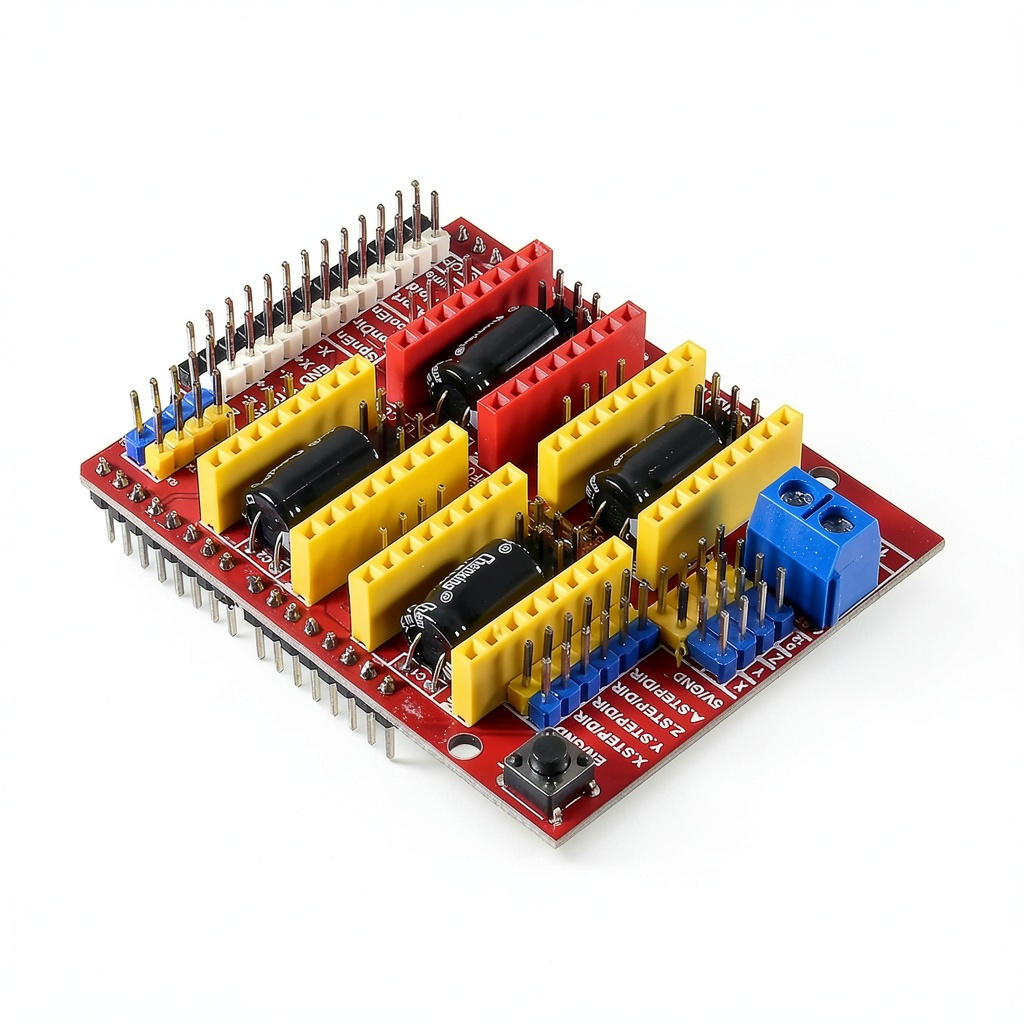

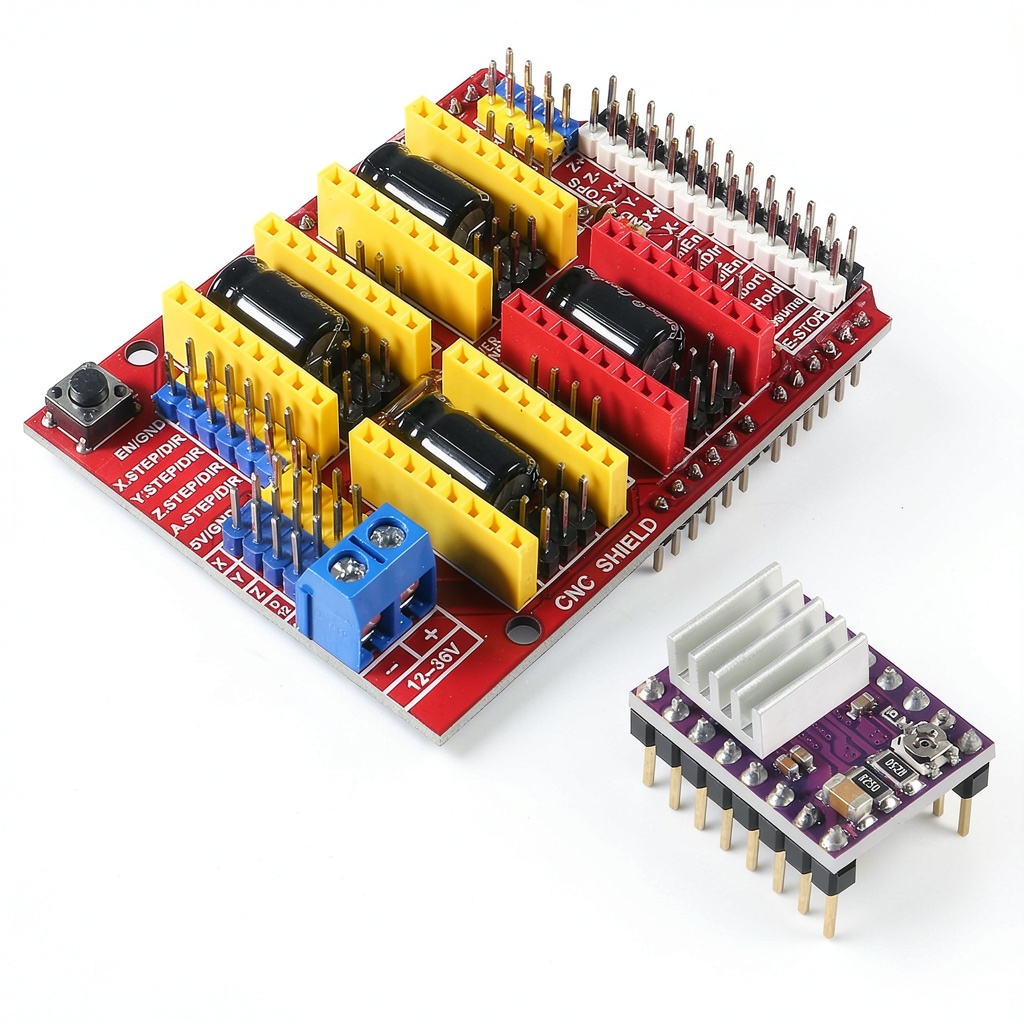

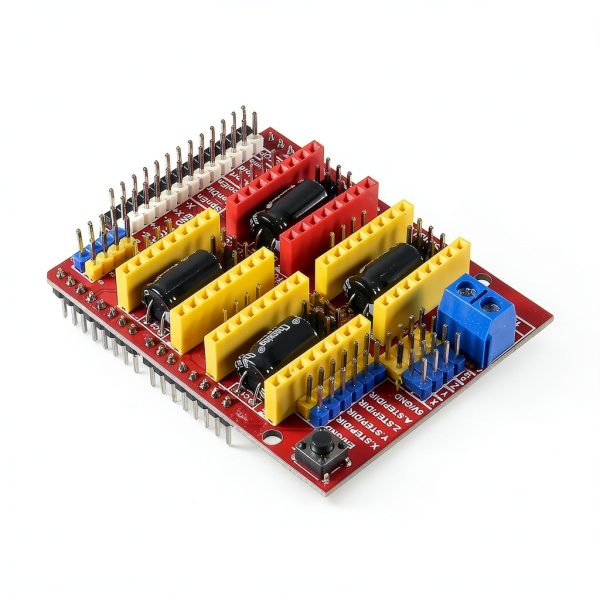

The AITIAO CNC Shield V3.0 is engineered as a versatile expansion platform that seamlessly integrates with popular Arduino‑compatible CNC and 3D printer controllers. Its compact footprint—measuring just 2.36 x 2.36 inches—allows it to fit into tight machine enclosures while providing four dedicated slots for DRV8825 stepper driver modules. Each driver is paired with a high‑efficiency aluminum heatsink, ensuring stable operation even under prolonged high‑current loads. The board supports microstepping resolutions ranging from full‑step to 1/32 step, giving users fine‑grained control over motor movement for smoother curves and higher positional accuracy.

Designed with durability in mind, the shield incorporates robust copper traces, reinforced mounting holes, and a protective coating that resists moisture and dust. The power distribution network is optimized to handle up to 2.5 A per phase, while the built‑in over‑current and over‑temperature protection circuits safeguard both the drivers and the host controller from electrical faults. The board also features PWM spindle control pins and a dedicated direction pin, enabling seamless integration with 4‑axis setups (X, Y, Z, and A) without additional wiring complexity.

Usage

This expansion board is ideal for a wide range of applications, from hobbyist desktop 3D printers to professional CNC engraving machines. Users can install the shield onto a standard Arduino Mega or compatible controller, then insert the four DRV8825 modules into the designated sockets. The included heatsinks attach directly to the driver chips, providing immediate thermal dissipation without the need for external fans. Once assembled, the system can drive up to four stepper motors simultaneously, making it perfect for multi‑axis projects such as robotic arms, laser cutters, and multi‑extruder 3D printers.

Because the board supports adjustable current limiting, users can fine‑tune each motor’s power to match the specific torque requirements of their machinery. This flexibility reduces the risk of overheating and extends the lifespan of both the motors and the drivers. The microstepping capability also enables smoother motion at high speeds, which is essential for achieving high‑quality surface finishes in engraving or precise layer deposition in additive manufacturing.

Installation is straightforward: simply align the shield’s pin headers with the Arduino’s sockets, secure it with screws, and plug in the DRV8825 modules. The board’s clear silkscreen labeling helps users quickly identify the correct pins for step, direction, enable, and fault signals, reducing setup time and minimizing wiring errors.

Why Choose Us

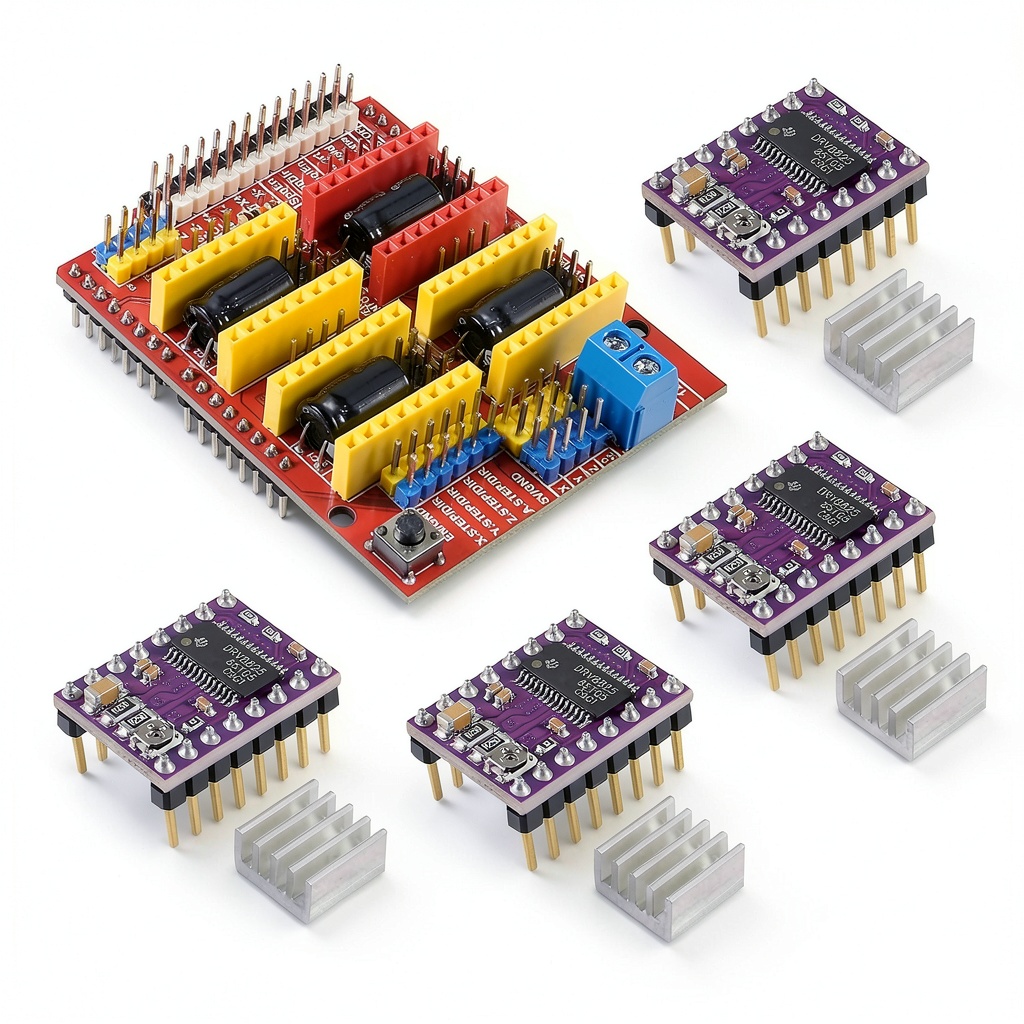

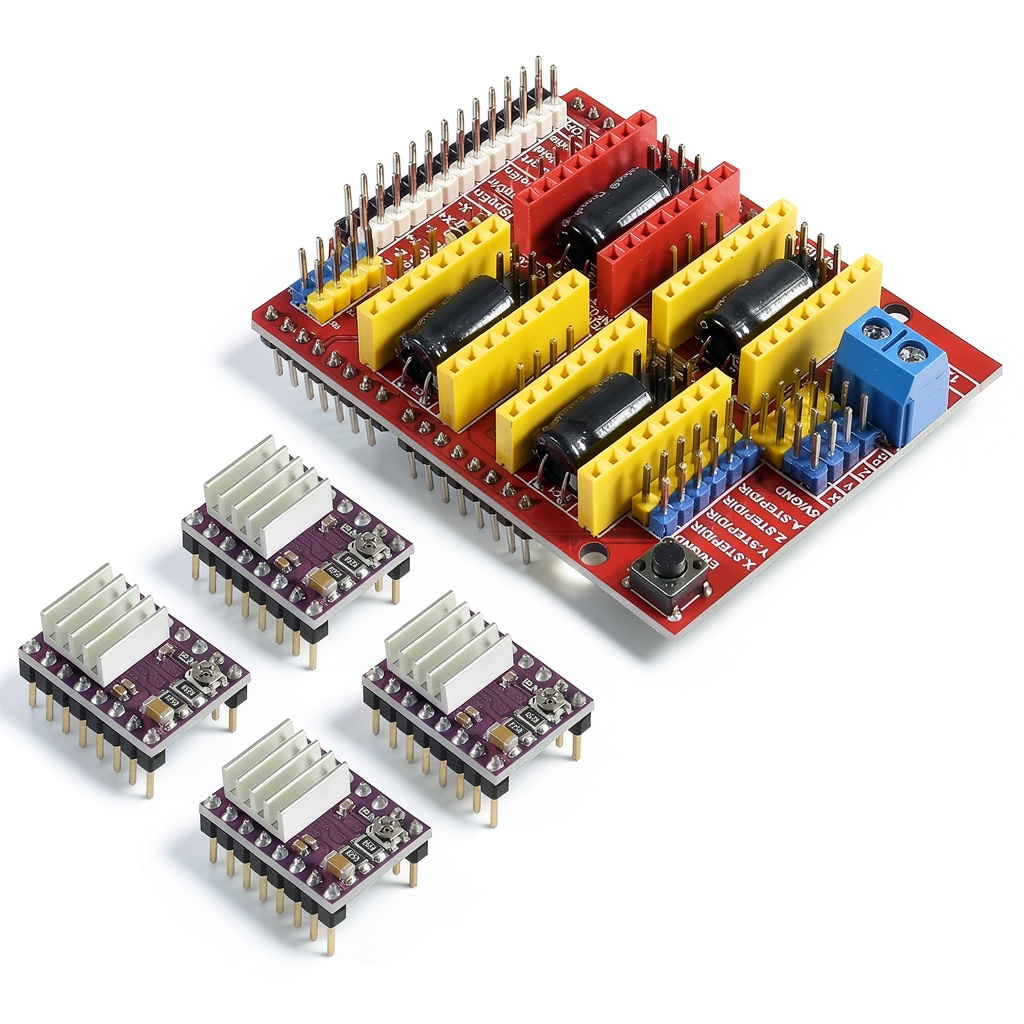

Choosing the AITIAO CNC Shield V3.0 means investing in a product that combines engineering precision with user‑friendly design. Each unit undergoes rigorous quality testing, including thermal cycling, electrical load verification, and mechanical stress assessment, to ensure reliable performance in demanding environments. The inclusion of four DRV8825 drivers with pre‑mounted heatsinks eliminates the need for separate cooling solutions, saving both time and cost.

Our commitment to customer satisfaction extends beyond the product itself. We provide a comprehensive user manual, detailed wiring diagrams, and firmware configuration guides that cover popular CNC and 3D printing software platforms. Should you encounter any issues, our responsive support team is available to assist with troubleshooting, firmware updates, and replacement parts, ensuring minimal downtime for your projects.

Furthermore, the board’s open‑source hardware design encourages community contributions and custom firmware development, allowing advanced users to tailor the system to niche applications such as CNC laser engraving, multi‑material extrusion, or synchronized motion control for complex robotic systems.

Key Features

• Four DRV8825 driver slots with pre‑installed aluminum heatsinks for reliable thermal management.
• Adjustable current limit and over‑temperature protection keep motors and drivers safe under heavy loads.
• Microstepping options from full‑step to 1/32 step deliver ultra‑smooth motion and high precision.
• Compact 2.36″ x 2.36″ footprint fits easily into most CNC and 3D printer enclosures.
• Dedicated PWM spindle control and 4‑axis support simplify wiring for complex multi‑axis projects.
• Robust copper traces and reinforced mounting holes ensure long‑term durability.
• Comprehensive documentation and responsive after‑sales support for hassle‑free integration.

FAQ

Can I use this shield with an Arduino Uno?

The shield is designed for Arduino Mega and compatible boards that provide the required number of I/O pins. While it may physically fit on an Arduino Uno, the limited pin count will prevent full functionality of all four driver slots.

Do the DRV8825 modules come pre‑configured?

Yes, each DRV8825 driver arrives with a heatsink attached and the default current setting set to 1.5 A. Users can adjust the current limit using the onboard potentiometer to match their specific motor specifications.

Is the board compatible with popular firmware like Marlin and GRBL?

Absolutely. The pin layout follows standard CNC and 3D printer conventions, making it compatible with Marlin, GRBL, and other open‑source firmware. Configuration guides are included to help you map the pins correctly.

What warranty does the product include?

All AITIAO CNC Shield V3.0 units come with a one‑year limited warranty covering manufacturing defects. If you encounter any issues, contact our support team for a replacement or repair.

Can I run more than four stepper motors with this board?

The shield provides four driver slots, each capable of driving one stepper motor. For applications requiring more than four axes, you would need to add additional driver boards or use a multi‑board configuration.
