WMYCONGCONG L298N Motor Controller Dual H‑Bridge DC Stepper Module

Description

Product Overview

The WMYCONGCONG L298N motor controller board is engineered to meet the demanding requirements of modern makers, engineers, and hobbyists who need precise and dependable motor control. At the heart of the board lies the proven L298N driving chip, renowned for its high current handling capability, low heat generation, and strong anti‑interference performance. The board measures a compact 43 mm by 43 mm by 27 mm (1.69 in × 1.49 in × 1.06 in), allowing it to fit easily into tight enclosures while still delivering robust dual H‑bridge functionality for both DC and stepper motor applications. Integrated on the board is a 78M05 voltage regulator that supplies a stable 5 V logic level, protecting the driver circuitry from voltage spikes and simplifying the power supply design. When the driving voltage exceeds 12 V, an external 5 V logic source can be connected to ensure optimal operation. The package includes five identical controller modules, providing a cost‑effective solution for projects that require multiple motor channels or redundancy.

Usage

This controller is perfectly suited for a wide range of applications. In the world of 3D printing, the dual H‑bridge architecture enables precise control of extruder motors and X/Y/Z axes, delivering smooth motion and accurate positioning. Robotics enthusiasts can employ the board to drive wheel motors, robotic arms, and articulated joints, benefiting from the board’s ability to handle both high‑torque DC motors and fine‑step stepper motors. Educational kits and hobby projects that involve motorized platforms, conveyor belts, or automated blinds also gain from the board’s straightforward wiring and reliable performance. Because the board operates efficiently with minimal heat, it can be mounted in environments where thermal management is a concern, such as enclosed 3D printer frames or compact robotic chassis. The built‑in regulator reduces the need for additional components, making the board an excellent choice for rapid prototyping and low‑volume production runs.

Why Choose Us

Choosing the WMYCONGCONG L298N controller means selecting a product backed by a reputation for quality and consistency. Each board undergoes rigorous testing to verify that the L298N chip meets its rated current specifications and that the voltage regulator maintains a stable 5 V output under varying load conditions. The design incorporates strong anti‑interference shielding, ensuring reliable operation even in electrically noisy environments such as industrial workshops or near high‑frequency switching power supplies. Our commitment to customer satisfaction includes responsive technical support, detailed documentation, and a clear return policy, giving developers confidence that any questions or issues will be addressed promptly. Additionally, the five‑piece package provides immediate scalability for projects that require multiple motor channels, reducing the time and expense associated with sourcing additional controllers.

Key Features

• Dual H‑bridge design delivers smooth, bidirectional control for both DC and stepper motors.
• Compact 43 mm square footprint fits easily into tight mechanical designs.
• Integrated 78M05 regulator supplies stable 5 V logic, simplifying power management.
• Robust L298N chip provides high current capacity with low heat generation.

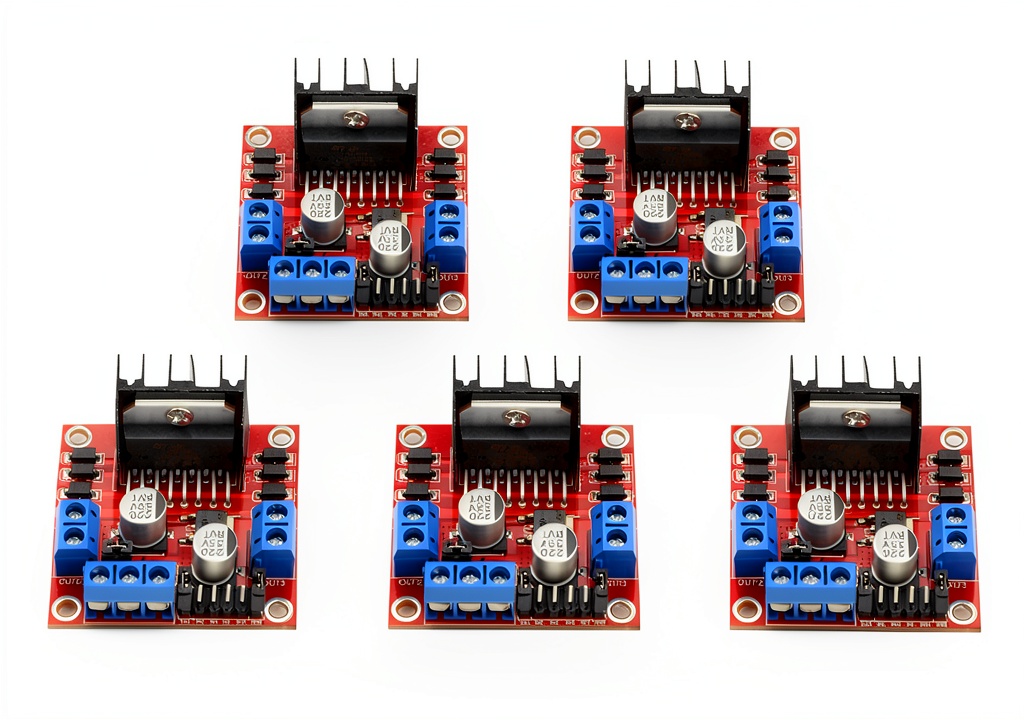

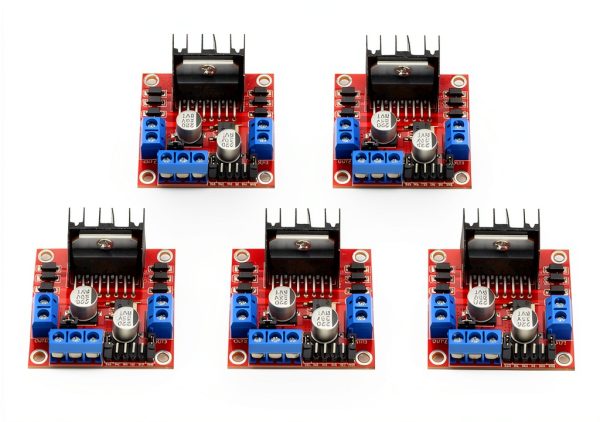

• Five‑board package offers immediate scalability and excellent value for multi‑motor projects.
• Responsive technical support and clear documentation ensure quick resolution of any integration challenges.

FAQ

What voltage range can the L298N board handle?

The board is designed to operate with a motor supply voltage from 5 V up to 35 V. For logic levels, the built‑in 78M05 regulator provides a stable 5 V, but an external 5 V source can be used when the motor voltage exceeds 12 V.

Can I use the board to drive stepper motors directly?

Yes, the dual H‑bridge configuration supports stepper motor operation. By energizing the appropriate coils in sequence, you can achieve precise step control suitable for 3D printers, CNC machines, and robotic actuators.

Is the board compatible with Arduino and other microcontrollers?

The board’s 5 V logic interface is fully compatible with popular microcontroller platforms such as Arduino, ESP32, Raspberry Pi Pico, and many others. Simple wiring diagrams are provided in the documentation to help you get started quickly.

How does the built‑in regulator protect the circuit?

The 78M05 regulator on the board stabilizes the logic voltage at 5 V, shielding the L298N driver from voltage fluctuations and preventing damage to downstream components. This reduces the need for external regulation circuitry.

What warranty and support are offered?

We provide a one‑year limited warranty covering manufacturing defects, along with dedicated email and forum support to assist you with integration, troubleshooting, and optimization of your motor control projects.
