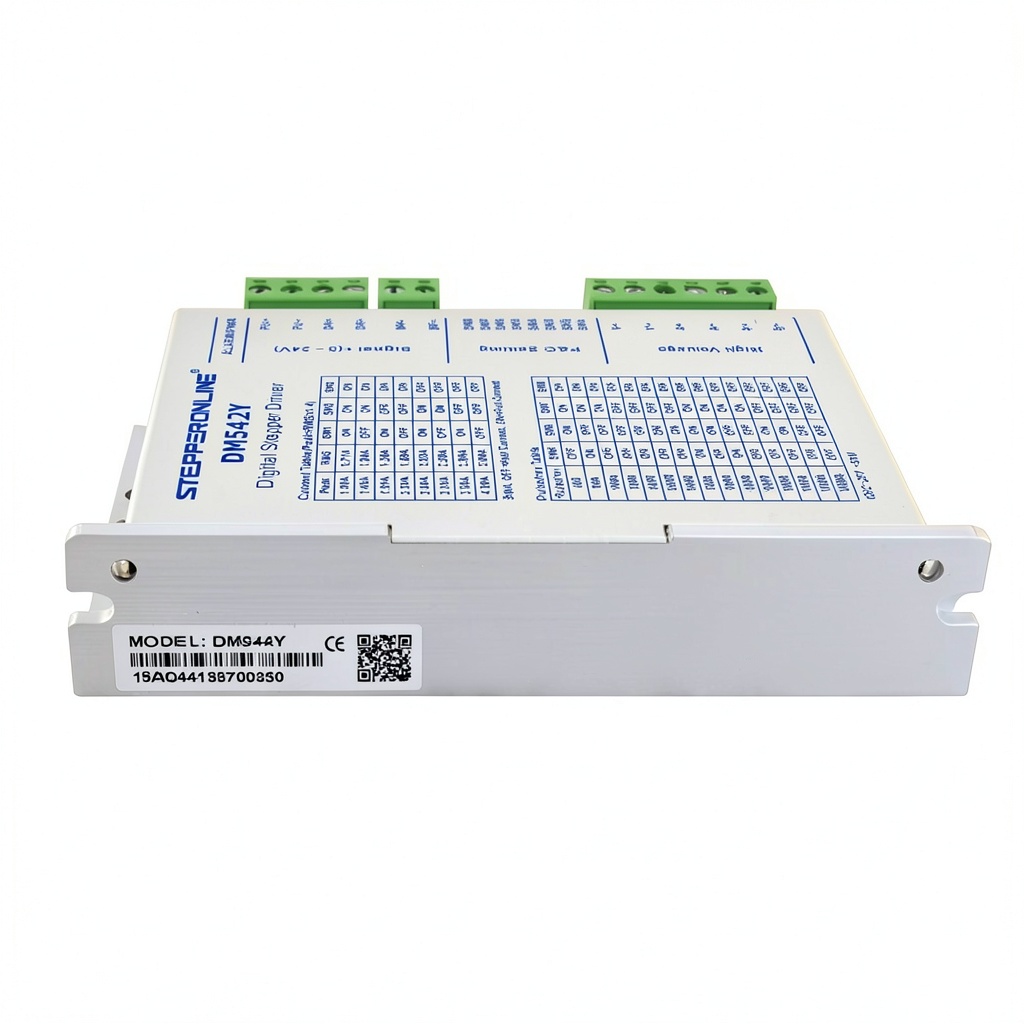

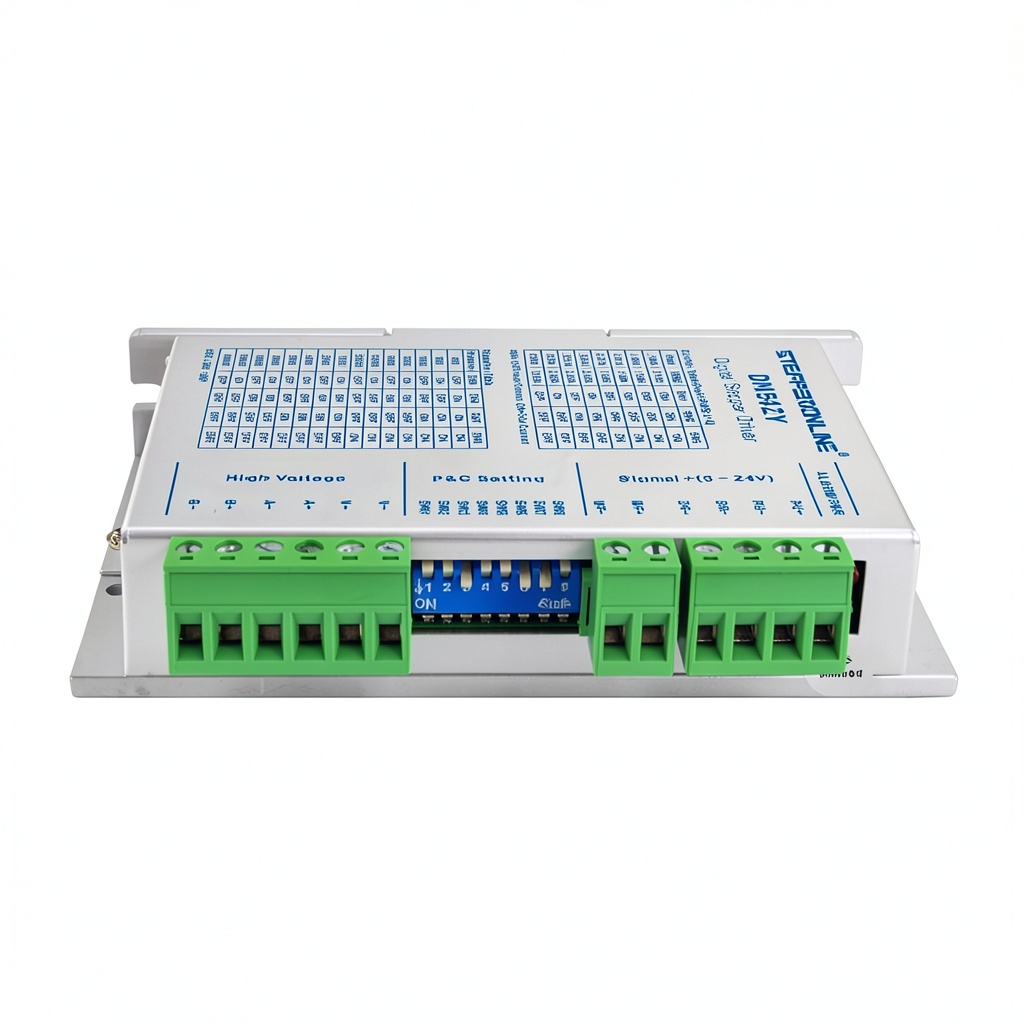

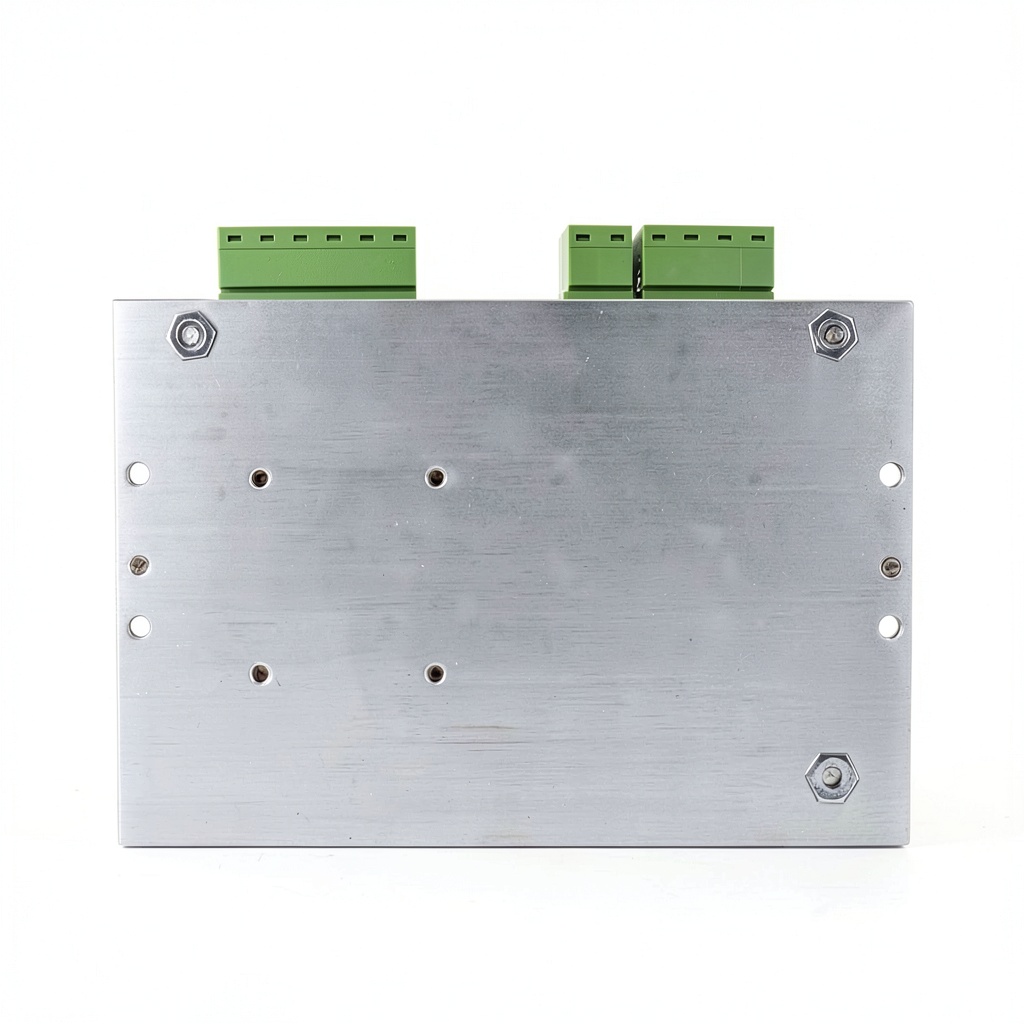

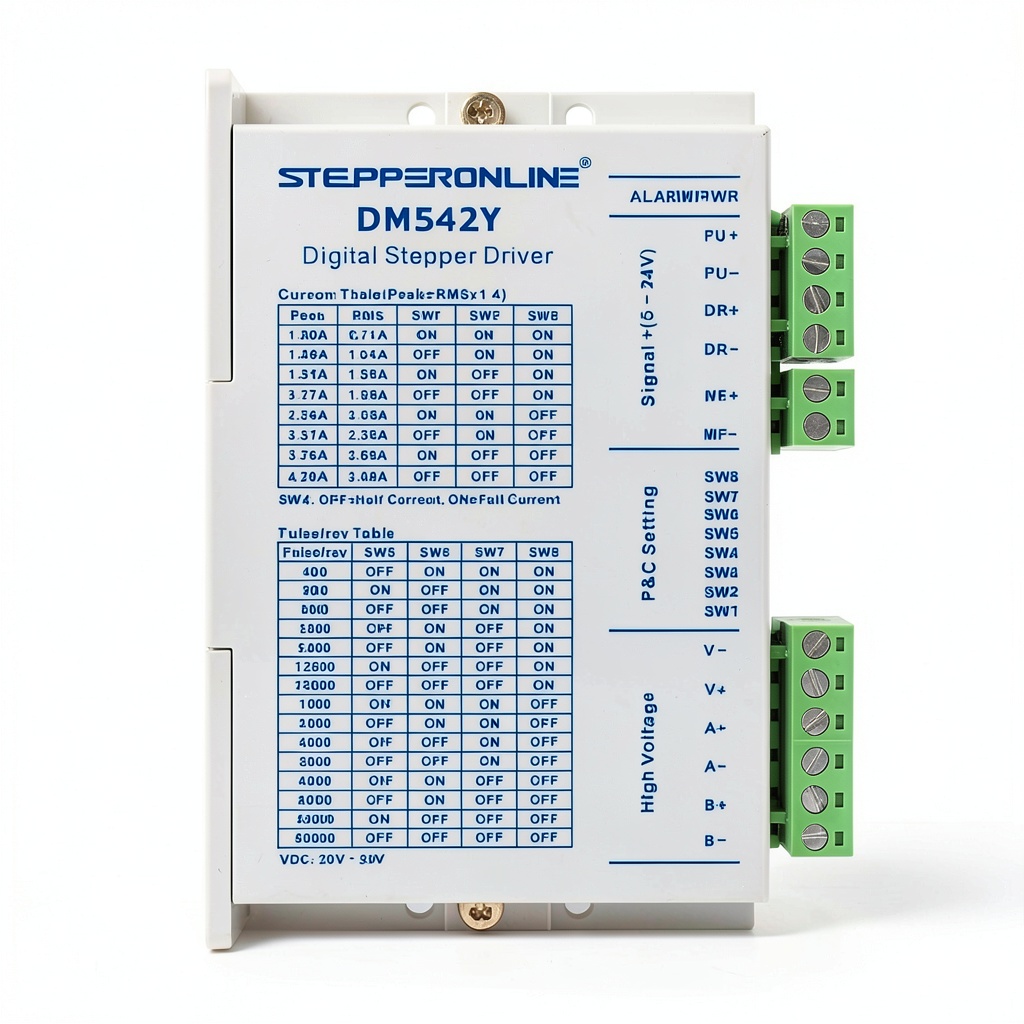

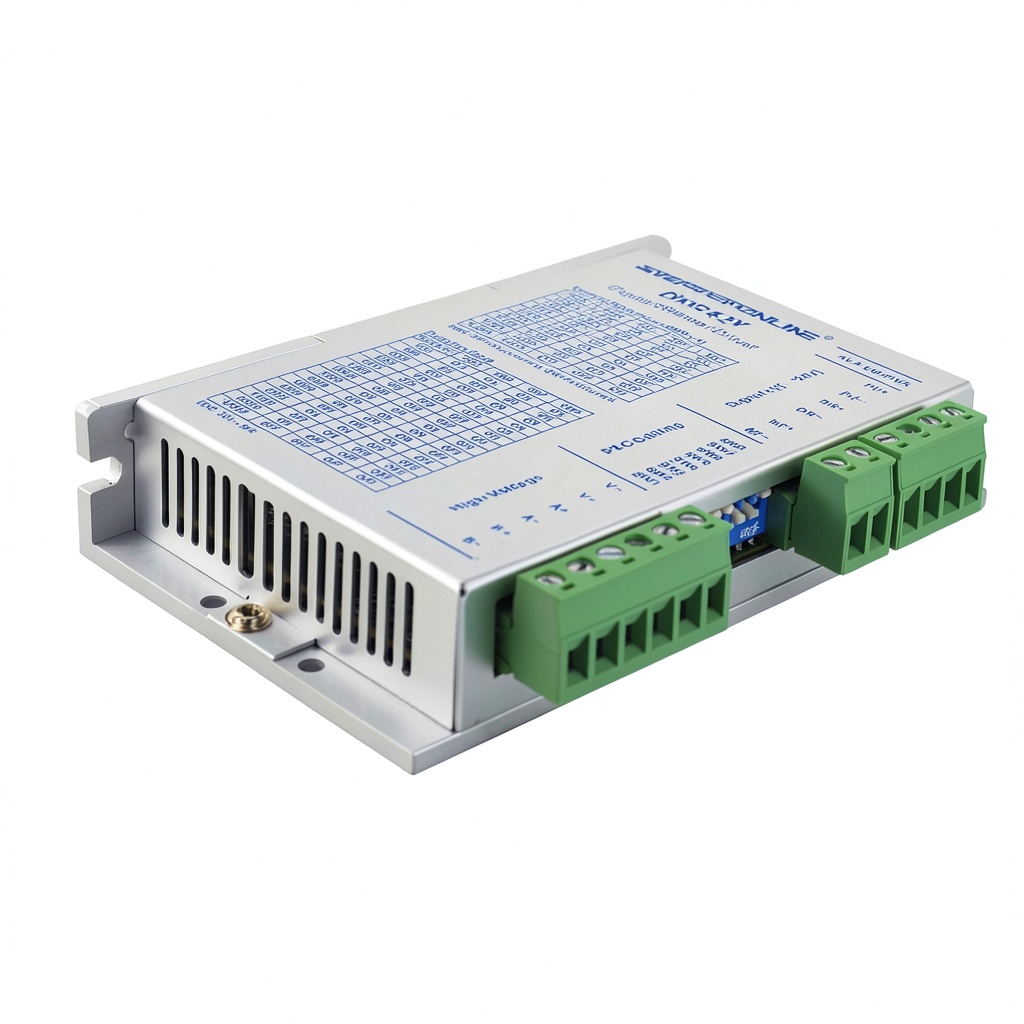

Stepper Motor Driver STEPPERONLINE DM542Y 1-4.2A 20-50V Nema 17/23/24

Description

Product Overview

The STEPPERONLINE DM542Y is a digital stepper motor driver designed for precision motion control in a variety of industrial and hobbyist applications. Engineered to handle Nema 17, 23, and 24 stepper motors, this driver delivers a peak current of up to 4.2 A (0.71~3.0 A RMS) while accepting a flexible input voltage range of 20 to 50 V DC. Its high‑frequency impulse response of up to 200 kHz ensures rapid and accurate positioning, making it ideal for CNC routers, 3D printers, robotic arms, and other automated equipment. The driver incorporates optically isolated differential signal inputs, providing strong anti‑interference capability and protecting the system from electrical noise. Compact dimensions (6.2 × 4.6 × 2.5 in) and a lightweight design (11.22 oz) allow easy integration into tight enclosures.

Usage

Designed for both professional and enthusiast environments, the DM542Y excels in settings where reliable, high‑speed stepper control is essential. In CNC machining, it drives the spindle and axis motors with smooth acceleration and deceleration, reducing mechanical wear and improving surface finish. For 3D printing, the driver maintains consistent extrusion rates and precise layer positioning, resulting in higher print quality and reduced artifacts. Its wide voltage tolerance accommodates various power supplies, from bench‑top adapters to industrial‑grade units, giving users flexibility in system design. The driver’s robust construction also makes it suitable for outdoor robotics, automated conveyor systems, and laboratory instrumentation where stability under fluctuating electrical conditions is critical.

Why Choose Us

Choosing the STEPPERONLINE DM542Y means selecting a product backed by years of engineering expertise and a reputation for quality. Each unit undergoes rigorous testing to meet international safety standards, ensuring consistent performance across batches. The driver’s optically isolated inputs protect sensitive control electronics from voltage spikes and electromagnetic interference, extending the lifespan of both the driver and the host system. With a proven track record reflected in a 4.8‑star rating from verified customers, users can trust the reliability and precision of this driver. Additionally, STEPPERONLINE provides responsive technical support and a comprehensive warranty, giving peace of mind for both new adopters and seasoned engineers.

Key Features

• High peak current up to 4.2 A enables strong torque for demanding motor loads
• Wide input voltage range (20‑50 V) offers flexibility with many power supplies
• 200 kHz impulse response provides ultra‑smooth and fast motion control
• Optically isolated differential inputs reduce noise and protect circuitry
• Responsive technical support and warranty ensure reliable after‑sales service

FAQ

What stepper motor sizes are compatible with the DM542Y?

The driver is compatible with Nema 17, Nema 23, and Nema 24 stepper motors, covering a broad range of torque and size requirements for most CNC and 3D printing applications.

Can the driver be used with a 24 V power supply?

Yes. The DM542Y accepts input voltages from 20 V up to 50 V DC, so a 24 V supply operates well within its specified range, providing stable performance.

How does the optically isolated input improve system reliability?

Optical isolation separates the control signal from the power circuitry, preventing voltage spikes and electromagnetic interference from reaching the controller, which reduces the risk of signal corruption and component damage.

Is there a recommended cooling method for continuous high‑current operation?

For prolonged high‑current use, it is advisable to attach a heat sink to the driver’s thermal pad and ensure adequate airflow. This helps maintain optimal temperature and prevents thermal throttling.

What warranty and support does STEPPERONLINE provide?

STEPPERONLINE offers a standard one‑year warranty covering manufacturing defects, along with access to a knowledgeable technical support team that can assist with installation, configuration, and troubleshooting.

Overall, the STEPPERONLINE DM542Y digital stepper driver combines robust performance, flexible power options, and reliable protection features, making it a versatile choice for a wide array of motion‑control projects. Whether you are building a high‑precision CNC router, a reliable 3D printer, or a custom robotic system, this driver delivers the consistency and accuracy required to achieve professional results. Its compact footprint and lightweight design simplify integration into existing hardware, while the comprehensive support ecosystem ensures that users can quickly resolve any issues that arise during development or production. By selecting the DM542Y, you invest in a proven solution that balances power, precision, and durability, ultimately enhancing the efficiency and quality of your automated equipment.
