Description
Product Overview

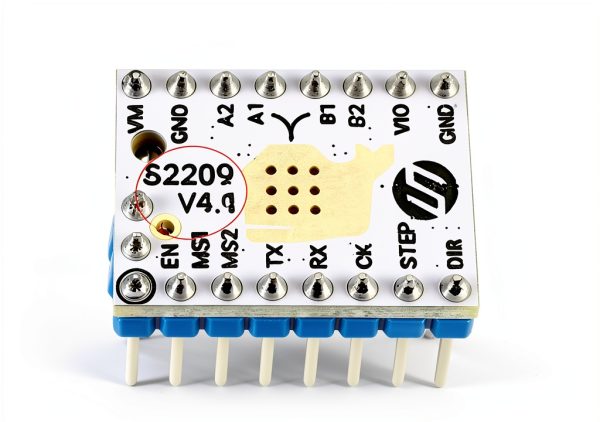

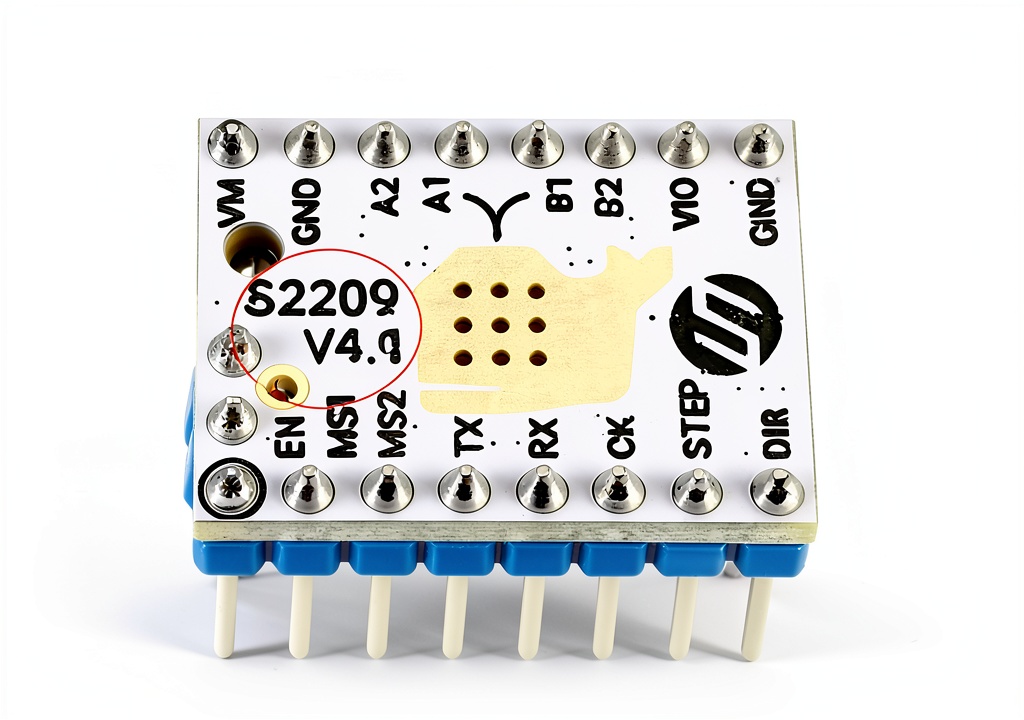

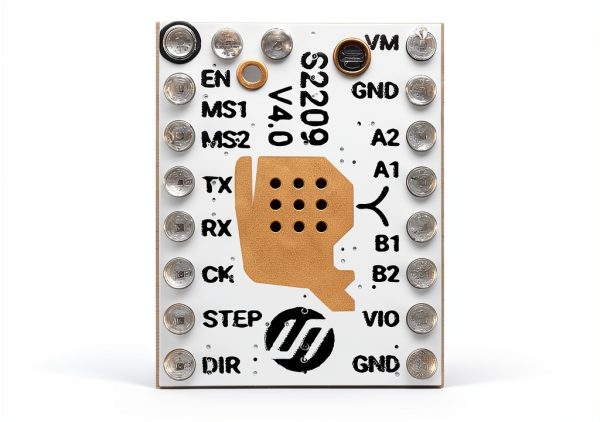

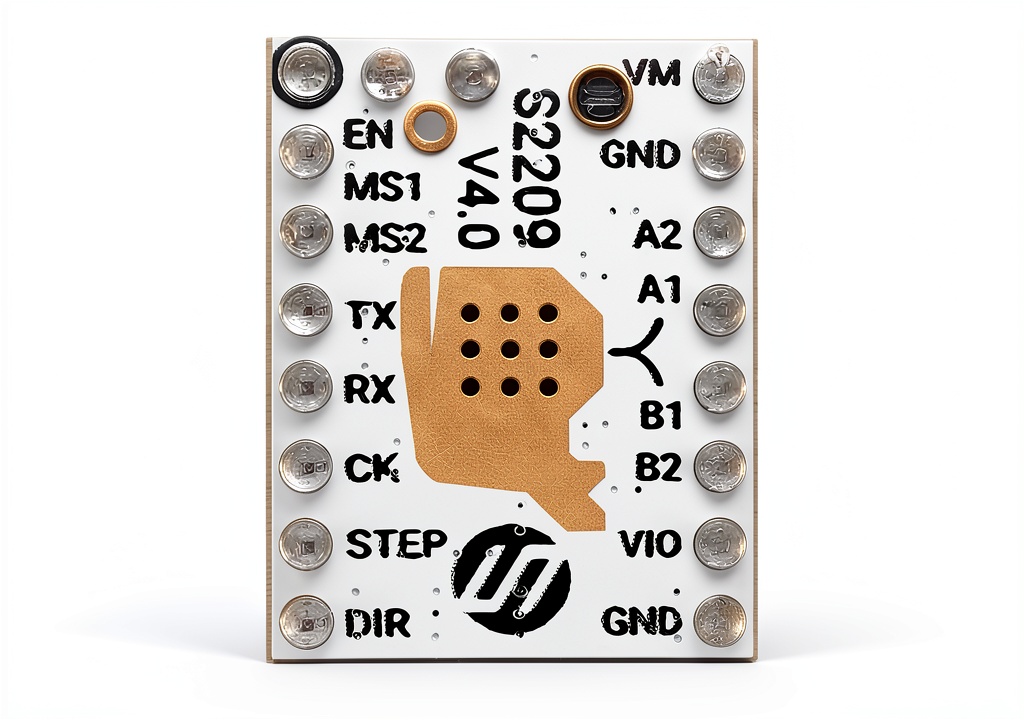

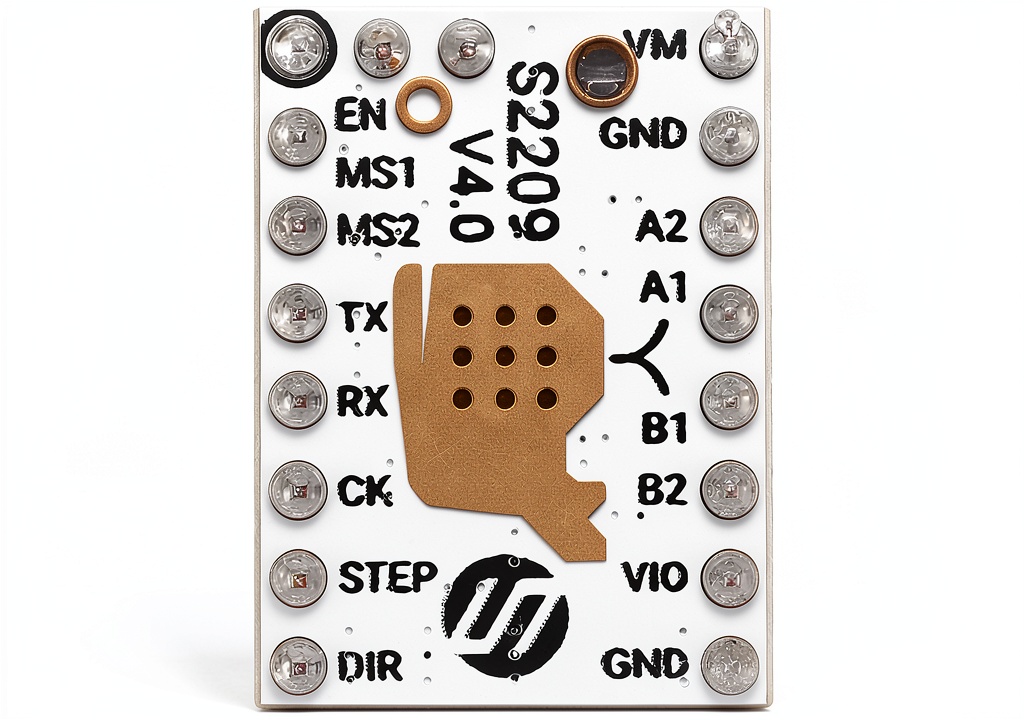

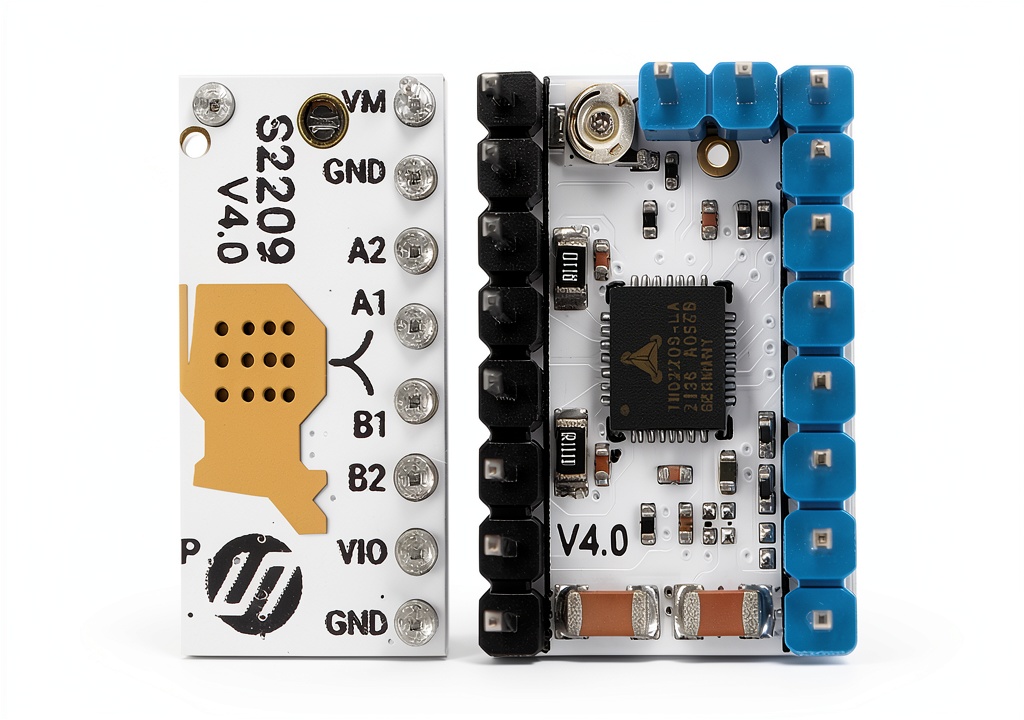

The FYSETC TMC2209 V4.0 stepper motor driver is a high-performance upgrade for 3D printers, designed for quiet, precise, and reliable motor control. Compatible with popular motherboards such as MKS Gen, SpideKing, and Ramps 1.4/1.5/1.6, this driver supports UART mode for easy integration. With integrated power MOSFETs and StallGuard 4, it delivers up to 2A RMS current while maintaining silent operation. Ideal for users seeking to enhance print quality and reduce mechanical noise.
Usage
This driver is ideal for hobbyists, makers, and professionals using 3D printers with compatible control boards. It’s perfect for environments where quiet operation is essential, such as home workshops, schools, or small-scale production facilities. The UART mode allows seamless integration with existing firmware and control systems, making it suitable for both beginners and advanced users who want to upgrade their printer’s motor control without complex modifications.
Why Choose Us
We offer a reliable, industry-grade stepper driver with proven compatibility across major 3D printer platforms. The TMC2209 V4.0 delivers superior noise reduction and precision compared to legacy drivers, while its integrated protection features ensure long-term reliability. Our product is backed by clear upgrade instructions and compatibility notes to help users install and configure it with confidence. We prioritize quality and customer support to ensure your upgrade experience is smooth and successful.
Key Features
- Ultra-silent operation with StealthChop technology for quieter printing environments
- UART mode compatibility for easy firmware integration and control
- StallGuard 4 for sensorless homing and motor current monitoring
- Supports two-phase bipolar stepper motors up to 2.8A peak current
- Includes detailed upgrade tips and compatibility notes for seamless installation
FAQ
Is this driver compatible with my 3D printer motherboard?
Yes, the FYSETC TMC2209 V4.0 is compatible with popular motherboards including MKS Gen, SpideKing, Ramps 1.4/1.5/1.6, and FYSETC S6/F6. Check the upgrade tips for specific pin configurations.
Does it require additional components for installation?
Minimal setup is required. You may need to add a CLK pin tied to GND via 0R and reserve pull-up/pull-down resistors for SPREAD. Move TX from pin 3 to pin 5 if needed.
What is the maximum current this driver can handle?
The TMC2209 V4.0 supports up to 2A RMS continuous current and 2.8A peak current for two-phase bipolar stepper motors.
Can I use this driver with existing firmware?
Yes, it supports UART mode and is compatible with most firmware configurations. No re-flashing is required for most setups.
What is the warranty or support for this product?
While we do not offer a formal warranty, we provide detailed installation guides and compatibility notes to ensure a smooth upgrade experience. Customer support is available for technical questions.
